RH Renovation NYC completed a comprehensive low-slope flat roof replacement featuring complete tear-off down to the structural deck, tapered insulation drainage optimization, and a high-performance fully adhered elastomeric membrane system for a property located in the Bronx, NYC. Flat and low-slope roofing systems across the Bronx’s dense urban neighborhoods are exposed to severe microclimates—including high ultraviolet (UV) exposure, localized urban wind-shear, heavy seasonal nor’easters, and winter freeze-thaw cycles that induce intense thermal expansion and contraction.
Over time, these regional stressors compromise aging flat roof assemblies, leading to seam separation, membrane blistering, and chronic ponding water that places continuous hydrostatic pressure on the underlying structural decking. Left unaddressed, trapped water leads to structural timber rot, saturated insulation, and severe energy loss. The primary objective of this project was to permanently eliminate active water penetration and ponding issues by engineering a fully adhered, energy-efficient roofing system that complies with all New York City Department of Buildings (DOB) code requirements while providing multi-decade, low-maintenance waterproof protection.
Comprehensive Scope of Work & Installation Methodology
To satisfy strict NYC DOB building and energy conservation codes while delivering an absolute, long-term waterproof seal, our licensed and insured Bronx specialists executed a rigorous, multi-phase technical installation protocol:

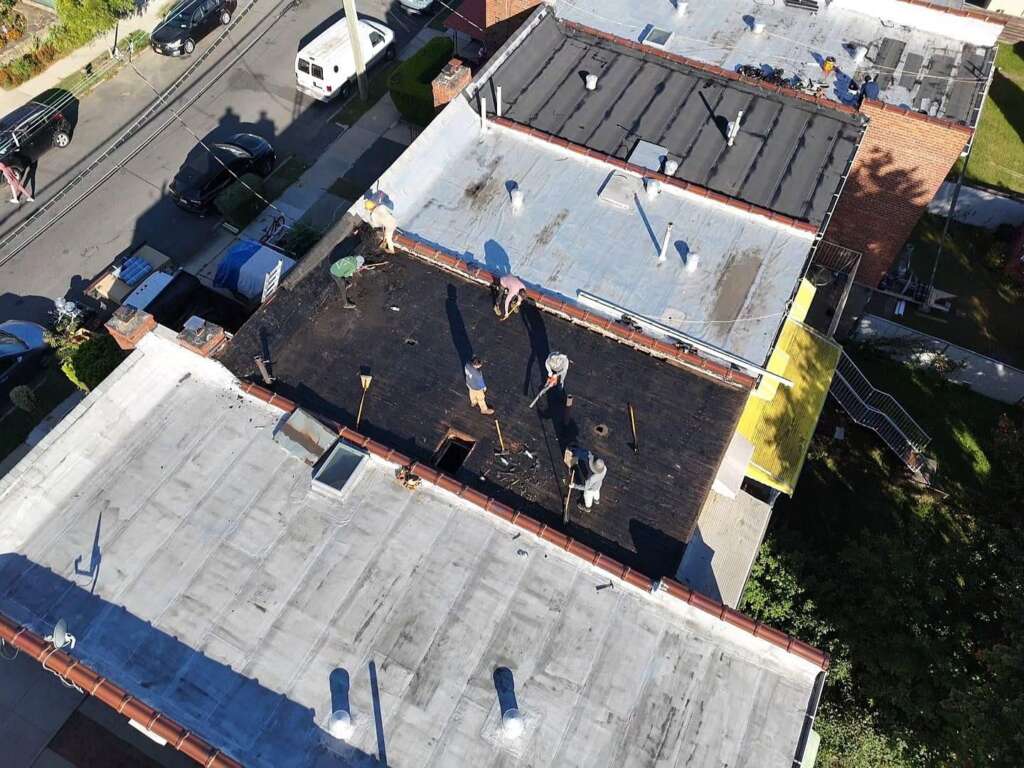

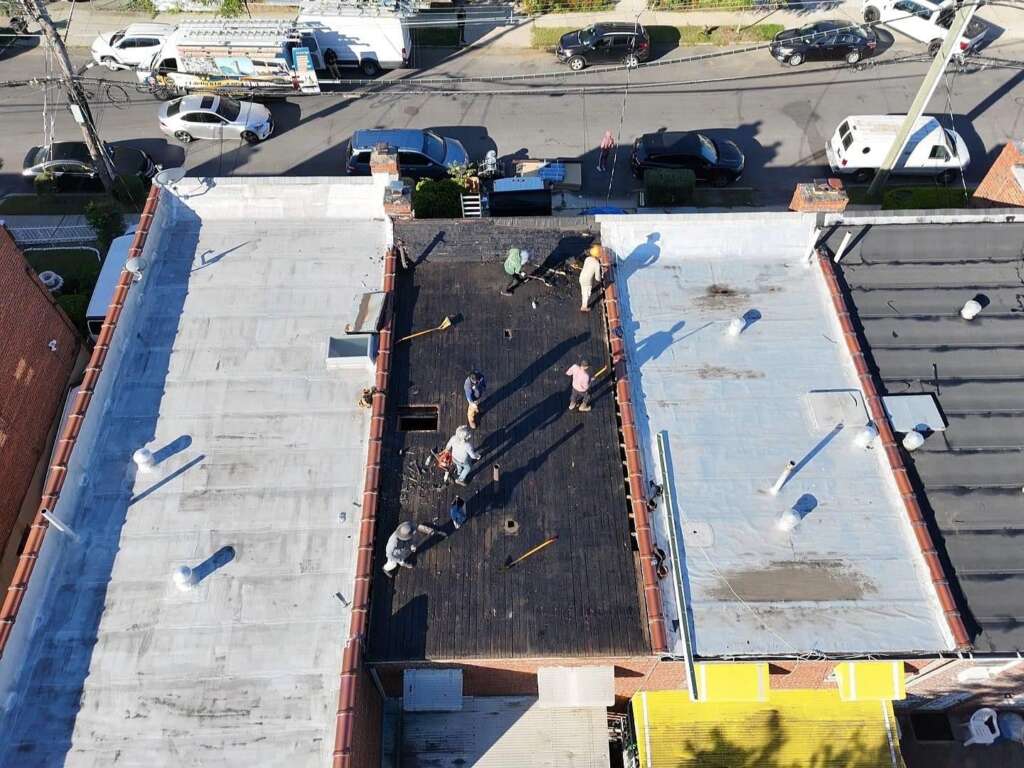

- Complete Tear-Off & Structural Deck Audit: The legacy flat roof membrane, waterlogged insulation, and deteriorated flashing details were fully stripped down to the raw structural decking. Technicians performed a detailed engineering audit, cutting out damaged wood framing or degraded concrete/steel substrate panels and restoring the structural base to ensure full load-bearing capacity.
- Tapered Polyisocyanurate Insulation & Drainage Optimization: High-R-value rigid polyisocyanurate (ISO) insulation boards and custom tapered insulation crickets were mechanically fastened and fully adhered across the deck. This engineered sloping strategy permanently eliminates standing water zones by directing stormwater fluidly toward internal drains, scuppers, and perimeter collection points.

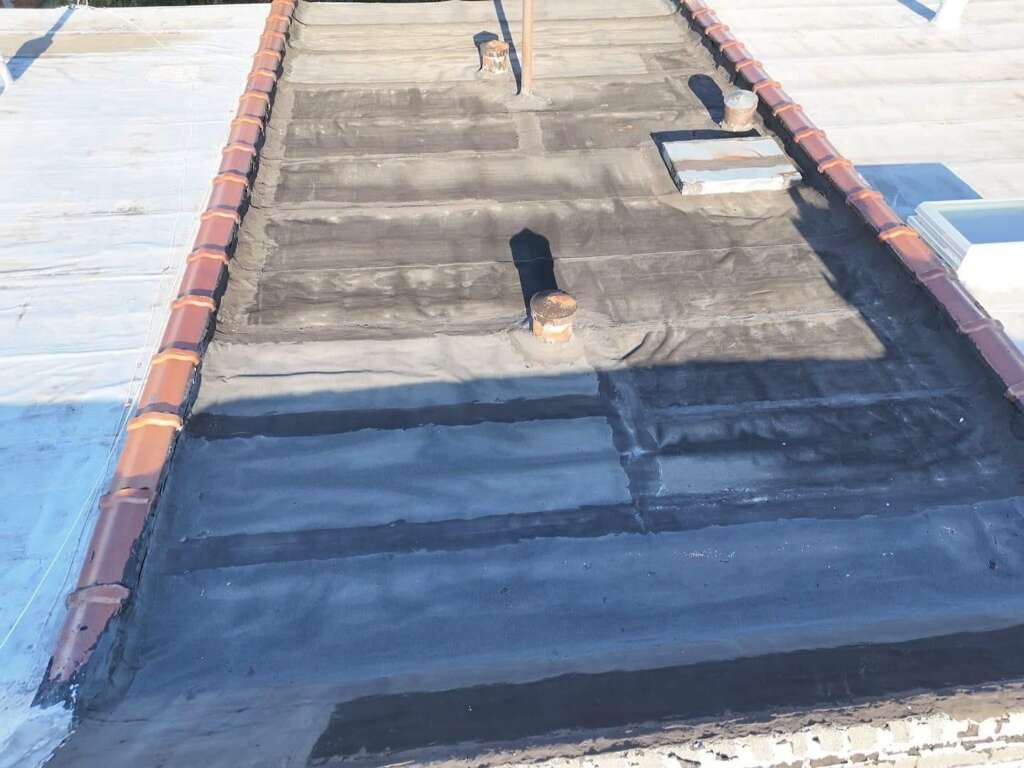

- Fully Adhered High-Performance Waterproof Membrane Installation: A commercial-grade single-ply elastomeric membrane (such as heavy-duty EPDM or hot-air welded TPO) was rolled out and fully adhered to the rigid insulation substrate using high-tack bonding adhesives. All field seams were hot-air welded or bonded with heavy-duty seam tape, creating a monolithic, highly flexible barrier capable of withstanding extreme thermal shock and ponding water without splitting or lifting.
- Parapet Wall & Penetration Flashing Detailing: All critical roof transition boundaries—including parapet wall terminations, skylight curbs, HVAC curbs, plumbing vent stacks, and metal edge perimeters—were wrapped with self-adhering flashing membranes, heavy-gauge termination bars, counter-flashings, and industrial-grade lap sealants.
- Final Quality Assurance & Compliance Audit: A thorough multi-point inspection and water-tightness test verified that all seam welds, termination bars, and drainage pathways complied with strict manufacturer warranty standards and local DOB building codes, followed by a complete magnetic sweep and site cleanup.
Project Highlights & Technical Specifications
- Service Category: Structural Low-Slope Flat Roof Replacement & Thermal Envelope Sealing
- Project Location: The Bronx, New York, NY
- Core Materials Used: Commercial-grade flat roof membrane (EPDM/TPO), high-R-value rigid polyisocyanurate (ISO) insulation, custom tapered insulation crickets, heavy-duty termination bars, self-adhering flashing boots, counter-flashings, and industrial lap sealants.
- Key Engineering Focus: Hydrostatic ponding water elimination, hydrostatic leak mitigation, urban wind-shear uplift resistance, NYC DOB code compliance, and whole-building thermal efficiency.
Results & Property Owner Value
The completed flat roof replacement equips the Bronx property with an impenetrable defense against severe urban weather and seasonal climate shifts. By combining custom tapered drainage engineering with a fully adhered, high-durability membrane assembly, RH Renovation NYC permanently resolved chronic water intrusion and ponding vulnerabilities, enhanced upper-floor thermal performance, and delivered a low-maintenance roofing asset that secures the building’s long-term value.
