Project: Bayside Home Installation Service

RH Renovation NYC completed a multi-component exterior envelope restoration featuring bay window custom metal flashing capping, steep-slope asphalt shingle repair, and a new high-performance rubberized plumbing vent pipe boot cap installation for a residential home in Bayside, Queens, NYC. Properties in Bayside—situated near the East River and Little Neck Bay—are subjected to challenging coastal environment pressures. These include wind-driven rain, high atmospheric humidity, intense seasonal temperature swings, and severe wind-shear gusts.

Architectural projections such as bay windows and rooftop plumbing penetrations are notorious leak vectors if left unsealed. When legacy metal capping over a bay window degrades or gaps open, wind-driven rain runs directly behind the exterior siding, rotting subdecking and interior ceiling drywall. Concurrently, cracked or aging plumbing pipe rubber boots allow rainwater to follow soil stacks straight into attic insulation and wall cavities. This project delivered a comprehensive targeted envelope restoration: replacing damaged roof shingles, sealing pipe stack penetrations, and installing custom brake-formed capping over the bay window structure to ensure total watertight performance.

Comprehensive Scope of Work & Installation Methodology

To strictly adhere to New York City Department of Buildings (DOB) residential construction codes, our licensed and insured Queens exterior specialists executed a systematic, multi-phase technical installation protocol:

• Rooftop Inspection & Shingle Matrix Repair: Technicians conducted a thorough inspection of the steep-slope roof assembly. Weathered, lifted, and missing asphalt shingles around high-risk zones were removed down to the plywood sheathing. Fresh self-adhering ice-and-water underlayment was integrated before weaving in new high-wind architectural shingles using an engineered six-nail fastening pattern.

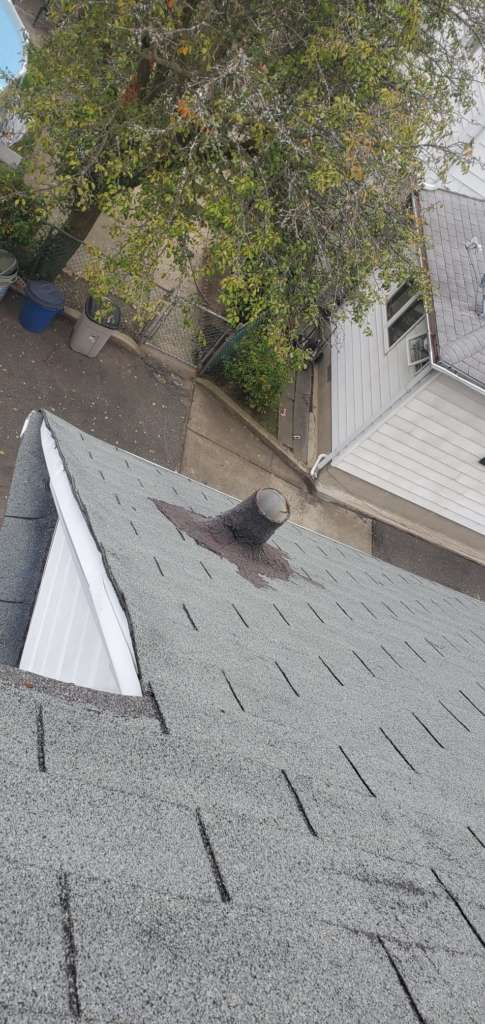

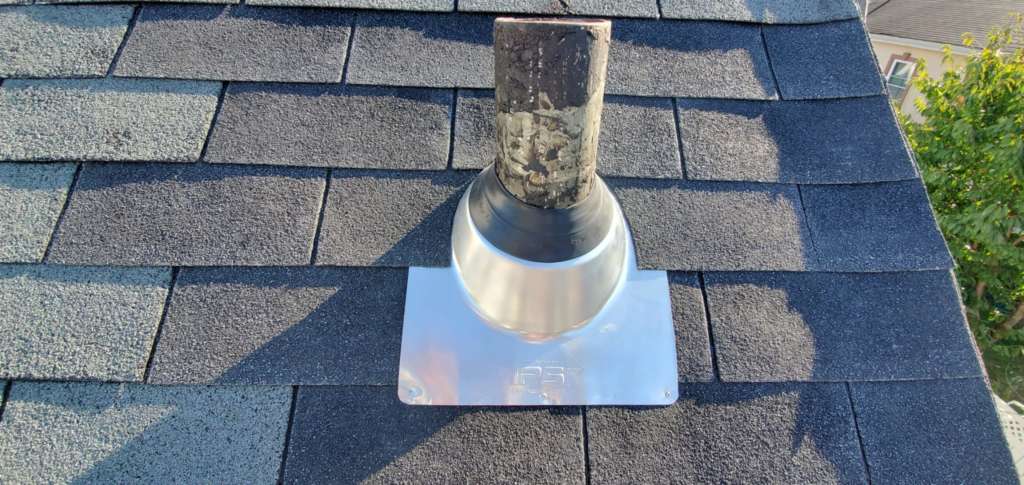

• Plumbing Vent Stack Collar & Pipe Boot Replacement: The cracked, deteriorated rubber boot collar around the bathroom soil pipe penetration was cut away. Technicians installed a heavy-duty, UV-resistant neoprene plumbing vent pipe boot with an integrated heavy-gauge aluminum base flange, tucked beneath upper shingle courses and sealed with industrial polyurethane lap sealant to prevent vertical water migration.

• Bay Window Framing Inspection & Substrate Prep: The exterior overhang and trim framing above the bay window projection were inspected for moisture damage. Compromised trim boards were reinforced, cleared of debris, and prepped with a weather-resistive air and water barrier.

• Custom Brake-Formed Metal Flashing Capping: Heavy-gauge aluminum sheet metal was custom-bent and brake-formed on-site to fit the precise contours of the bay window roof line and transition ledges. The new metal capping was custom-locked to cover vulnerability points, creating a smooth, weather-tight shield that sheds rainwater away from window frames.

• Perimeter Polyurethane Sealing & Final Quality Audit: All metal-to-wall step flashings, window head seams, and shingle interfaces were sealed with high-grade, non-sag, UV-resistant exterior polyurethane lap sealants. A water discharge test confirmed zero water penetration around the vent pipe boot and bay window assembly, followed by a complete ground magnet sweep.

Project Highlights & Technical Specifications

• Service Category: Residential Roof Shingle Repair, Custom Bay Window Metal Flashing Capping & Rooftop Penetration Pipe Boot Weatherproofing

• Project Location: Bayside, Queens, New York, NY

• Core Materials Used: Architectural dimensional asphalt shingles, self-adhering ice-and-water barrier, heavy-gauge custom brake-formed aluminum metal capping, UV-resistant neoprene plumbing vent stack boot, aluminum flange base, and industrial polyurethane lap sealants.

• Key Engineering Focus: Coastal wind-driven rain defense, roof penetration sealing, bay window overhang weatherproofing, water-shedding transition geometry, and NYC DOB code compliance.

Results & Homeowner Value

By combining targeted shingle repairs with a custom brake-formed metal bay window capping and a new plumbing vent pipe boot installation, RH Renovation NYC permanently sealed the home’s primary leak vulnerabilities. The Bayside homeowners now benefit from an aesthetically enhanced, weather-resistant exterior building envelope engineered to withstand severe coastal New York storms for years to come.
