Chimney Extension Service in Whitestone Queens

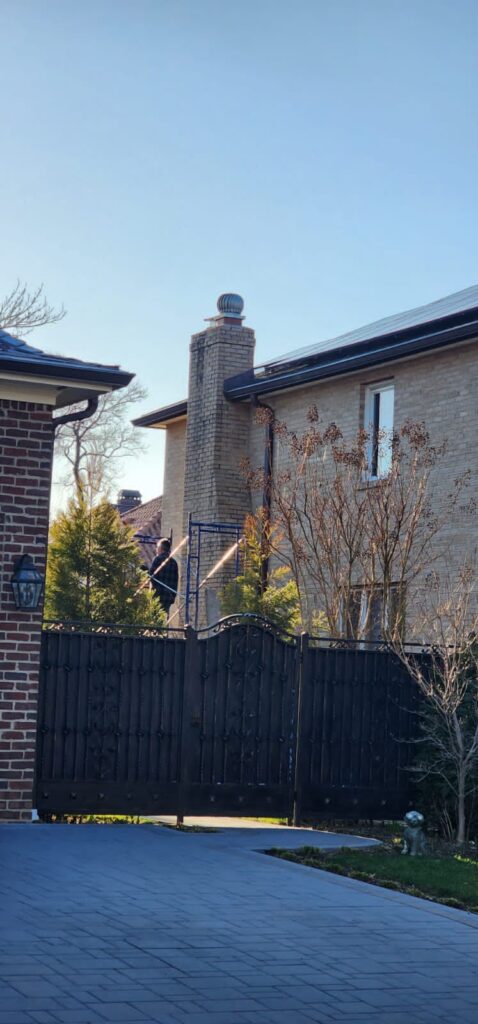

RH Renovation NYC completed a specialized masonry chimney extension project for a residential property located in Whitestone, Queens. Situated along the coastal waterfront and low-lying suburban corridors of Queens, homes in Whitestone are exposed to severe regional environmental stressors—including aggressive coastal winds, wind-driven nor’easter rain, and shifting barometric pressures that can disrupt proper heating appliance drafting.
When nearby architectural additions, tree canopies, or strict municipal height mandates alter wind patterns around a roofline, chimneys can suffer from turbulent downdrafts, smoke leakage, and code non-compliance regarding the NFPA (National Fire Protection Association) “3-2-1 rule” (requiring chimneys to extend at least 3 feet above the highest point of contact with the roof, and at least 2 feet higher than any roof portion within 10 horizontal feet). This project was engineered to structurally extend the masonry stack, re-establish optimal draft dynamics, and ensure absolute safety and municipal code compliance.
Comprehensive Scope of Work & Installation Methodology
To achieve absolute structural integrity, flawless combustion exhaust drafting, and strict compliance with New York City building and fire codes, our licensed and insured masonry specialists executed a rigorous, multi-phase installation protocol:
Structural Assessment & Code Clearance Audit: Technicians performed a comprehensive inspection of the existing chimney structure, flue liner integrity, and surrounding roof clearance to calculate the precise vertical extension required to satisfy NYC Department of Buildings (DOB) and NFPA safety mandates.

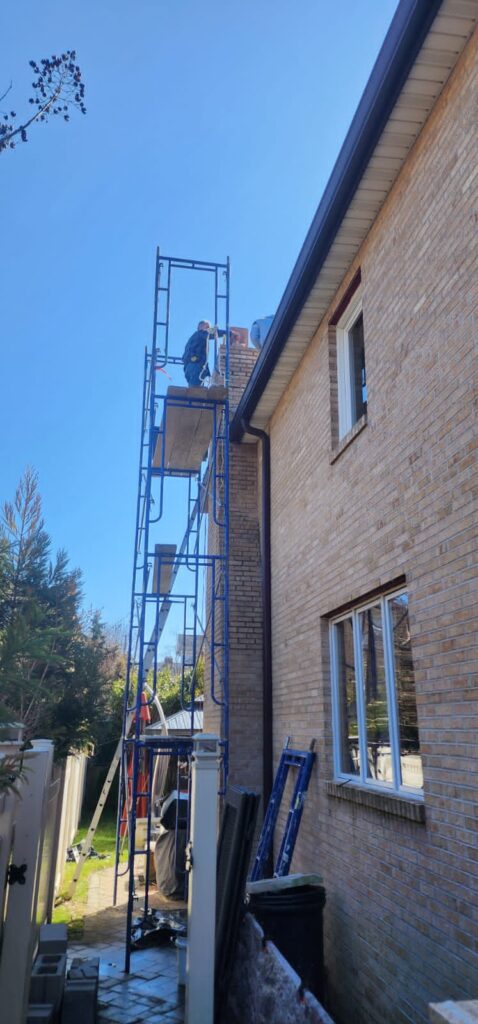

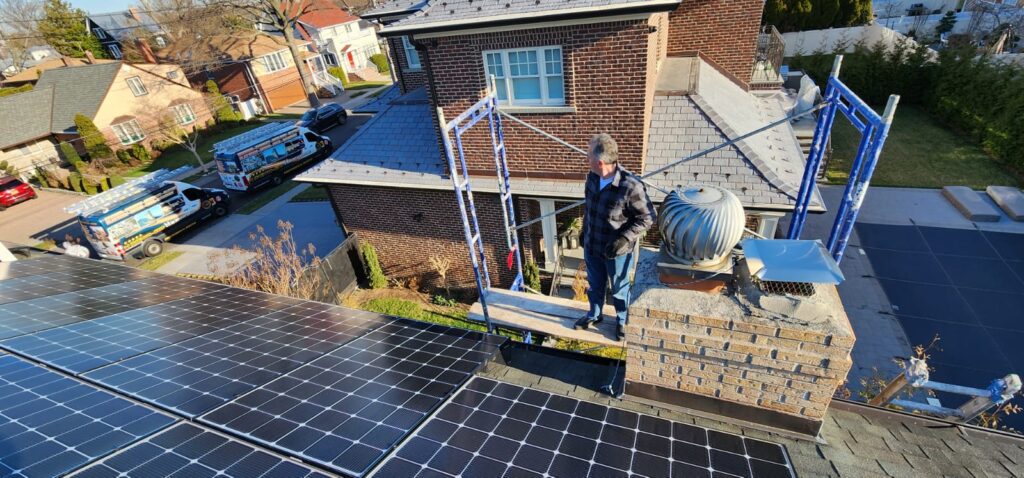

Masonry Demolition & Surface Preparation: The upper crown and top courses of the legacy chimney were carefully disassembled down to sound, load-bearing brickwork to ensure a rigid, structurally secure bonding interface for the vertical extension.

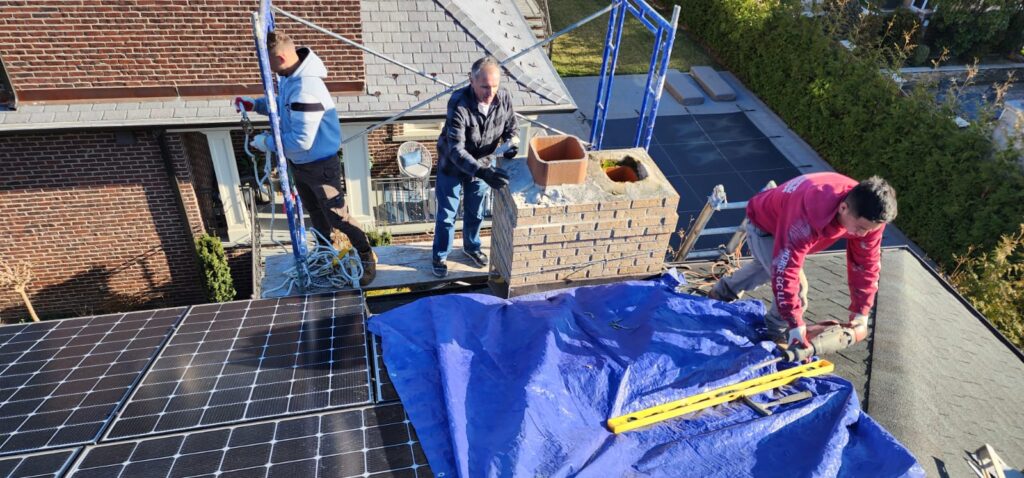

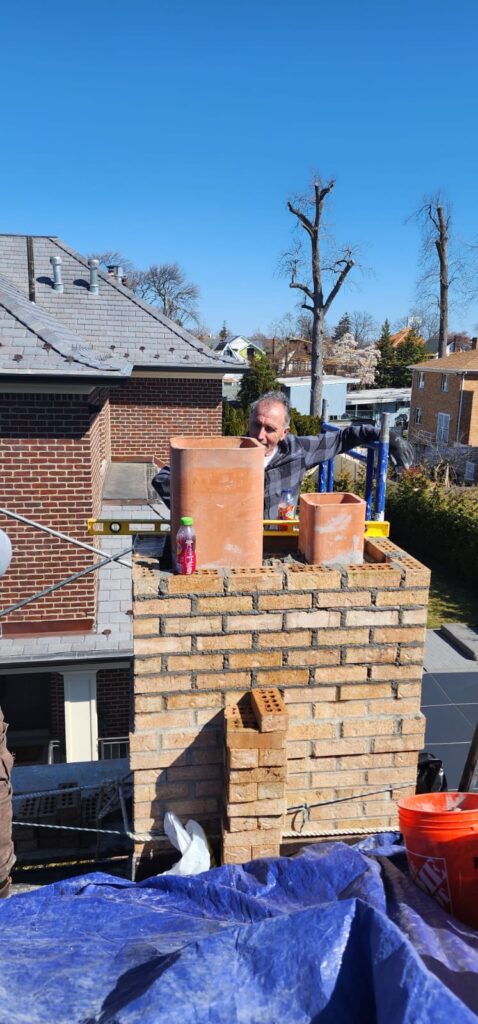

Precision Bricklaying & Mortar Match: Matching high-grade masonry bricks and high-strength mortar were laid in running bond courses, reinforced with internal stainless steel or galvanized tie anchors to withstand high-velocity coastal wind loads.
Flue Liner Extension & Thermal Sealing: A code-compliant stainless steel flue liner extension was integrated and sealed to the existing flue system, ensuring uninterrupted exhaust containment, preventing toxic combustion gas leakage, and protecting masonry walls from acidic condensation.
Cast-in-Place Concrete Crown & Cap Installation: A sloped, cantilevered concrete crown with an overhang and drip edge was poured at the top of the extended stack to shed rainwater away from the vertical brickwork, capped with a heavy-duty stainless steel spark arrestor rain cap.
Final Quality Assurance & Compliance Audit: A rigorous multi-point inspection verified structural plumbness, flue draft efficiency, and complete adherence to New York City building codes, followed by a thorough site cleanup.
Project Highlights & Technical Specifications
Service Category: Structural Masonry Chimney Extension & Flue Relining
Project Location: Whitestone, Queens, New York
Core Materials Used: Matching exterior masonry bricks, high-strength mortar, stainless steel flue liner extension, reinforced concrete crown mix, and heavy-duty stainless steel spark arrestor cap.
Key Engineering Focus: NFPA 3-2-1 vertical clearance compliance, coastal wind turbulence mitigation, combustion draft optimization, and freeze-thaw masonry spalling prevention.
Results & Homeowner Value

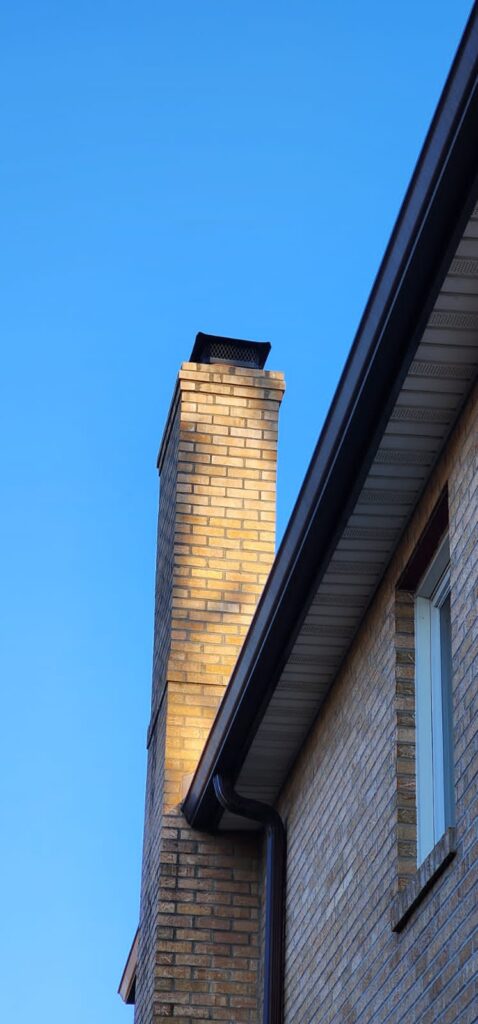

The completed chimney extension permanently resolves draft deficiencies and brings the Whitestone property into strict compliance with New York municipal codes. By reinforcing the structural stack and upgrading top-tier waterproofing and flue components, RH Renovation NYC delivers safe, efficient heating appliance operation and long-term protection against the elements.
