Project: Chimney Repair the Bronx

RH Renovation NYC completed a comprehensive residential chimney restoration and weatherproofing project featuring compromised mortar joint raking, brickwork tuckpointing, concrete crown rebuilding, custom lead transition flashing integration, and a custom heavy-gauge aluminum chimney cap installation for a property located in The Bronx, NYC. Exterior masonry chimneys across The Bronx face relentless microclimatic degradation—including severe freeze-thaw cycles during winter months, driving rain from seasonal nor’easters, extreme thermal expansion from heating appliance exhaust, and continuous exposure to urban atmospheric pollutants.

When an aging brick chimney experiences mortar erosion and brick spalling, water penetrates deep into the internal masonry core. During freezing temperatures, trapped water expands, accelerating structural deterioration, compromising flue draft efficiency, and causing interior water damage along attic rafters and ceiling structures. Furthermore, an open or un-capped chimney flue allows direct rain intrusion, bird and pest nesting, and leaf debris blockages that pose serious safety hazards. This project was engineered to execute a total masonry envelope renewal: stripping out friable mortar, repointing with high-flexibility compounds, rebuilding the top concrete crown, and fitting a custom aluminum cap for complete vertical rain and pest defense.

Comprehensive Scope of Work & Installation Methodology

To satisfy strict New York City Department of Buildings (DOB) building safety codes and NFPA 211 national chimney standards, our licensed and insured Bronx masonry specialists carried out a multi-phase technical installation protocol:

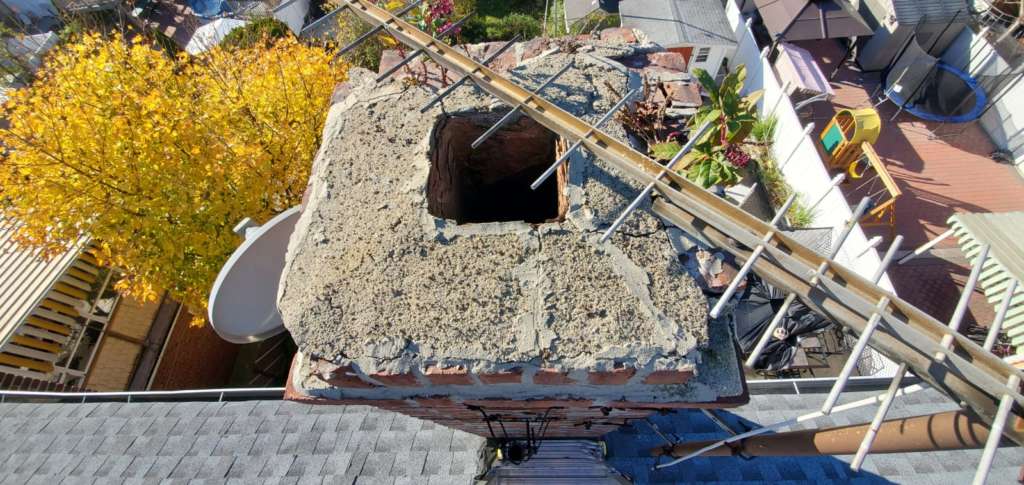

• Safety Rigging & Structural Masonry Audit: Technicians established roofline harness anchor points and perimeter staging before conducting a thorough visual and physical audit across all four faces of the brick chimney stack and flue tile lining.

• Joint Rake-Out & Surface Substrate Preparation: Damaged, loose, and crumbling mortar joints were systematically raked out to a uniform depth using specialized low-vibration diamond masonry tools. All loose fragments and dust were cleared using high-pressure air streams to ensure optimal bonding for fresh mortar.

• Precision Tuckpointing & Mortar Compaction: Premium Type N exterior-grade masonry mortar—specifically formulated for high flexibility and freeze-thaw endurance—was packed firmly into joint voids. Mortar joints were struck into a smooth, concave profile to shed water rapidly away from brick edges.

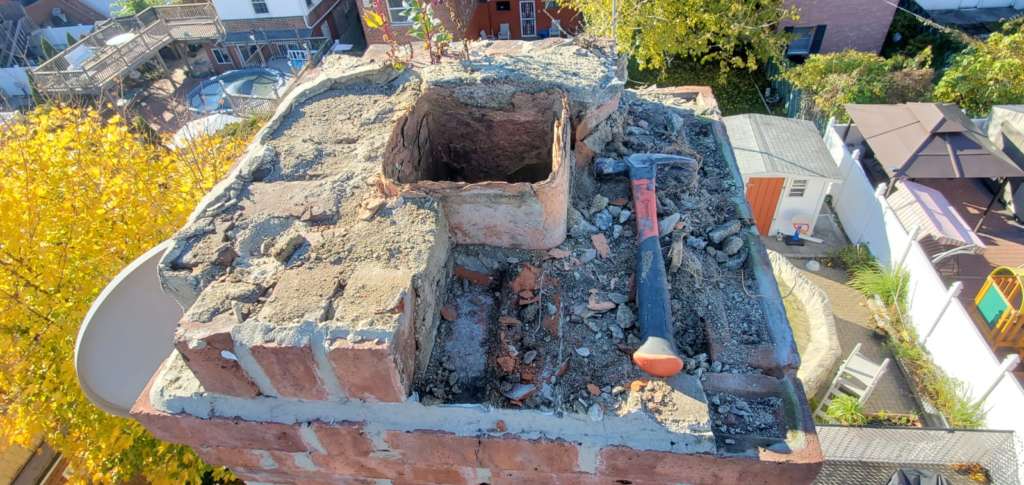

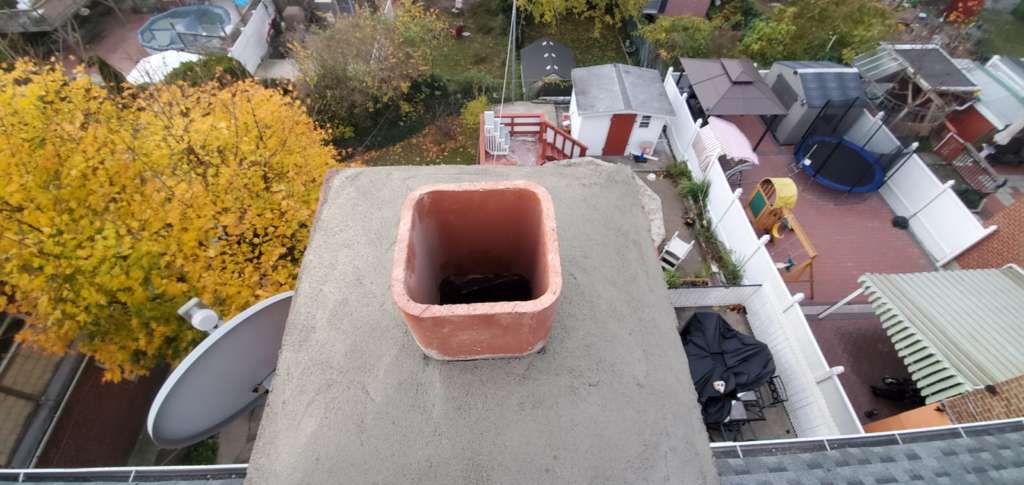

• Wash-Sloped Concrete Crown Reconstruction: The degraded top cement cap was removed down to sound brickwork and replaced with a custom fiber-reinforced concrete crown, hand-troweled into a pronounced downward wash slope away from central flue openings.

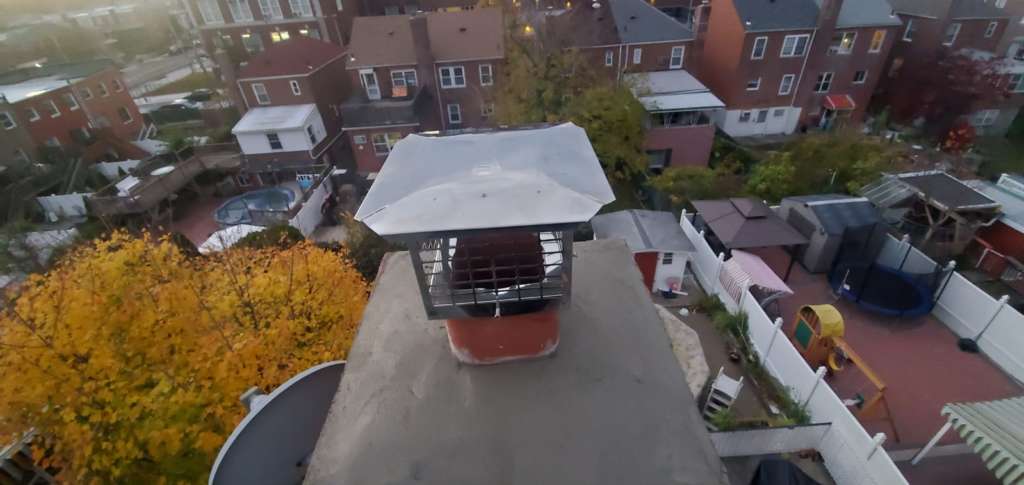

• Custom Heavy-Gauge Aluminum Chimney Cap Installation: A custom-bent, corrosion-resistant heavy-gauge aluminum chimney cap equipped with an integrated mesh screen was securely anchored over the chimney top. This assembly blocks vertical rain, suppresses spark embers, and prevents animal intrusion while allowing unhindered combustion gas exhaust flow.

• Flashing Integration & Waterproof Sealing: Custom lead step and counter-flashings were embedded into fresh bed joints at the roofline interface and sealed with UV-resistant polyurethane lap sealants. A deep-penetrating siloxane-based breathable water-repellent coating was applied across the entire brick stack to block driving rain while allowing internal moisture vapor to escape naturally.

Project Highlights & Technical Specifications

• Service Category: Residential Masonry Chimney Restoration, Brick Tuckpointing & Architectural Aluminum Chimney Cap Installation

• Project Location: The Bronx, New York, NY

• Core Materials Used: High-density exterior face bricks, Type N flexible masonry mortar, fiber-reinforced concrete mix, heavy-gauge custom aluminum chimney cap with mesh screen, custom lead step/counter-flashings, industrial polyurethane sealants, and siloxane water-repellent sealer.

• Key Engineering Focus: Hydrostatic water-shedding, freeze-thaw spalling defense, flue top weatherproofing, roof-to-masonry transition sealing, and NYC DOB / NFPA 211 code compliance.

Results & Homeowner Value

By combining precision brick tuckpointing with concrete crown reshaping, lead flashing detailing, and a custom aluminum cap installation, RH Renovation NYC permanently protected the home’s chimney from water intrusion and structural decay. The Bronx homeowners now benefit from a weather-tight, aesthetically refreshed, and safe chimney assembly engineered to endure severe New York weather for years to come.
