Project: Exterior Chimney Repair in the Bronx

RH Renovation NYC completed a targeted exterior chimney restoration and structural weatherproofing project featuring deteriorated mortar joint raking, brickwork tuckpointing, wash-sloped concrete crown restoration, custom lead transition flashing integration, and a heavy-duty stainless steel chimney cap installation for a residential property located in The Bronx, NYC. Exterior brick chimneys in dense urban neighborhoods throughout The Bronx are exposed to severe microclimatic pressures—including extreme freeze-thaw cycles, driving rain from seasonal nor’easters, severe thermal expansion from heating appliance exhaust, and continuous atmospheric pollution.

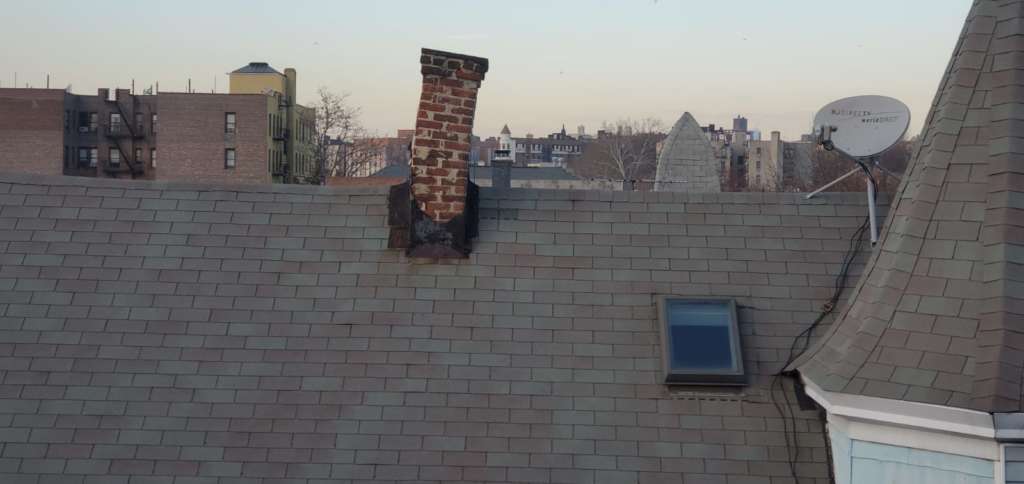

When an aging masonry chimney is left unprotected, unsealed mortar joints decay and crack, allowing water to penetrate deep into the interior brick chase. During cold winter months, trapped moisture expands within the masonry matrix, causing surface brick spalling, structural destabilization, interior drywall staining, and potential combustion flue gas leaks. Furthermore, missing or damaged chimney caps allow open rainwater intrusion, animal nesting, and debris blockages directly down flue liners. This project was engineered to deliver a complete exterior structural envelope renewal: raking out decayed joints, repointing with high-flexibility mortar, sealing roof-to-chimney transitions, and installing protective stainless steel chimney caps to ensure long-term heating safety, structural stability, and an elevated exterior aesthetic.

Comprehensive Scope of Work & Installation Methodology

To adhere strictly to New York City Department of Buildings (DOB) building safety codes and NFPA 211 national chimney standards, our licensed and insured Bronx masonry specialists executed a multi-phase technical installation protocol:

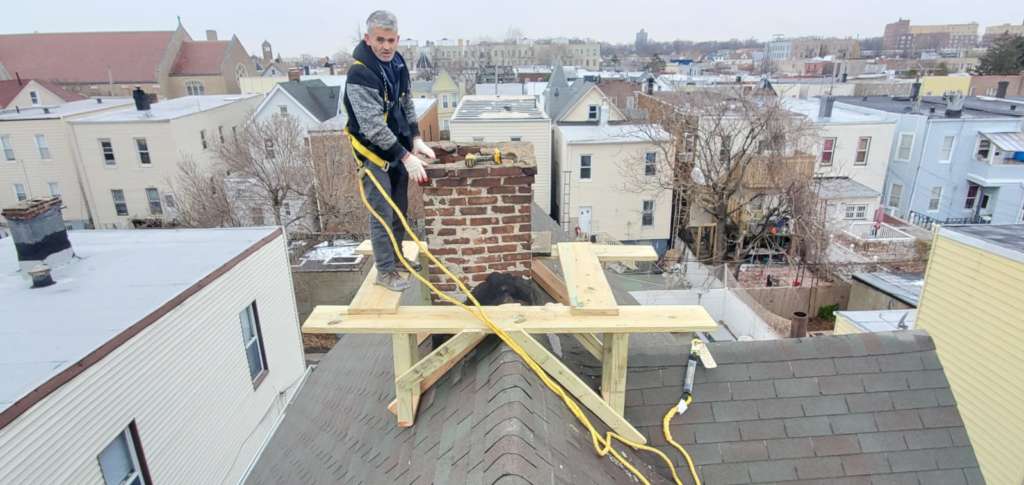

• Safety Rigging & Exterior Masonry Audit: Technicians established roofline safety tie-offs and perimeter protection before conducting a thorough visual and structural audit across all four faces of the exterior chimney stack and flue lining.

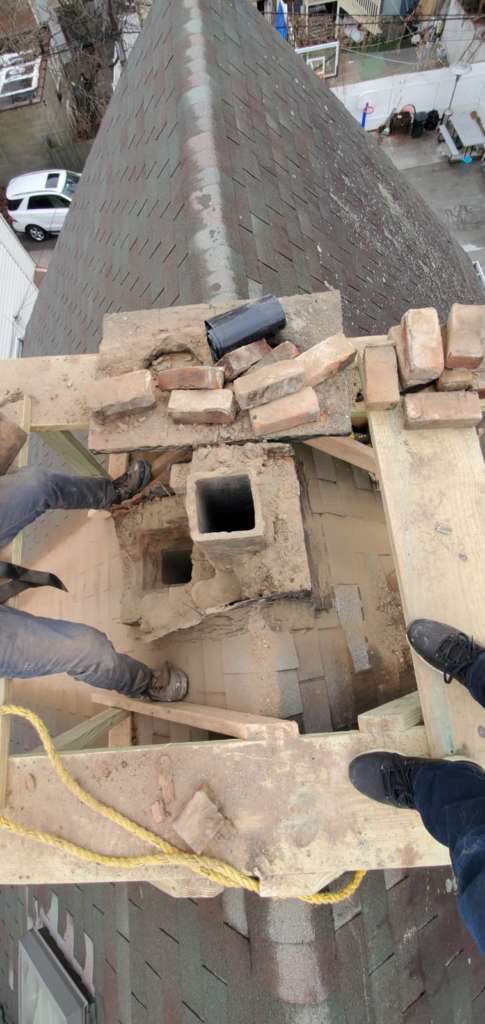

• Joint Rake-Out & Surface Preparation: Compromised, crumbling, and loose mortar joints were systematically raked out to a uniform depth using specialized low-vibration diamond blade tools. Dust, soot, and loose debris were purged using high-pressure air cleaning to guarantee maximum adhesion for fresh mortar.

• Structural Tuckpointing & Mortar Application: High-performance Type N exterior-grade masonry mortar—custom-formulated for flexible compression and freeze-thaw resilience—was packed into cleared joint voids. Mortar lines were struck into a smooth, concave profile to direct rainwater runoff away from brick edges rapidly.

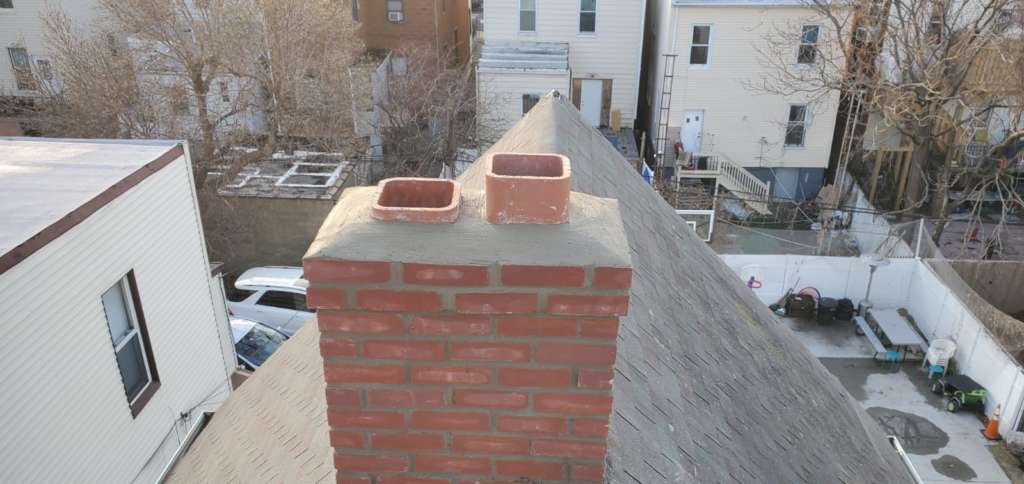

• Concrete Crown Wash-Slope Refurbishment: Micro-cracks and surface deterioration on the top concrete chimney crown were repaired and reshaped with a high-strength, fiber-reinforced concrete mix, hand-troweled into a pronounced downward wash slope away from central flue openings.

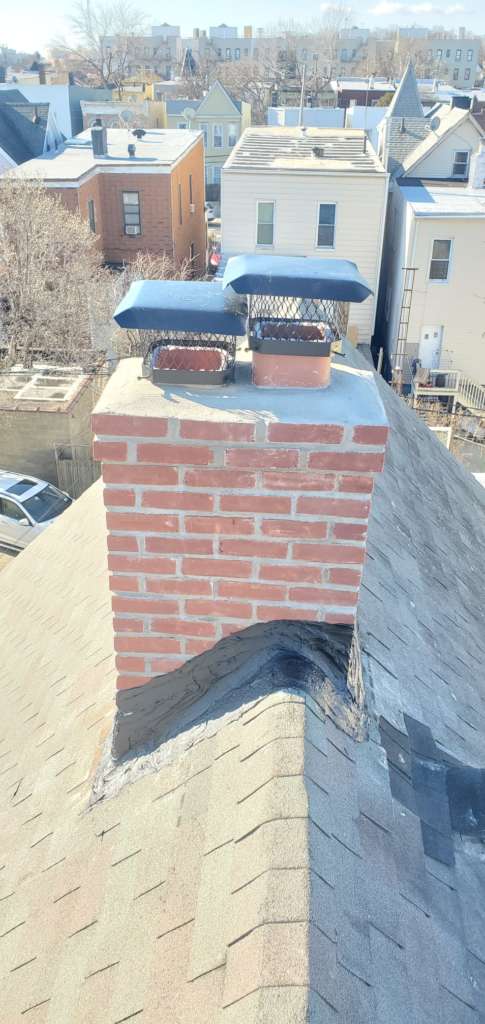

• Heavy-Duty Stainless Steel Chimney Cap Installation: Engineered stainless steel chimney caps equipped with integrated mesh spark arrestors were fitted and mechanically anchored to flue structures. This barrier blocks wind-driven vertical rain, suppresses flying embers, and eliminates wildlife intrusion while maintaining unhindered combustion exhaust flow.

• Lead Flashing Detailing & Siloxane Waterproof Sealing: Custom-bent lead step and counter-flashings were checked, reset, and sealed with non-sag exterior polyurethane lap sealants along the roof deck interface. A deep-penetrating siloxane-based breathable masonry water repellent was sprayed across the entire brick structure to block liquid water while allowing internal moisture vapor to escape.

Project Highlights & Technical Specifications

• Service Category: Residential Masonry Chimney Restoration, Brick Tuckpointing & Exterior Flashing Weatherproofing

• Project Location: The Bronx, New York, NY

• Core Materials Used: High-flexibility Type N exterior masonry mortar, fiber-reinforced concrete mix, heavy-gauge stainless steel chimney caps with mesh spark arrestor screens, custom lead step/counter-flashings, industrial polyurethane sealants, and deep-penetrating siloxane water-repellent sealer.

• Key Engineering Focus: Hydrostatic water-shedding, freeze-thaw spalling prevention, roof-to-masonry transition sealing, combustion draft safety, and NYC DOB / NFPA 211 code compliance.

Results & Homeowner Value

By combining precision tuckpointing with custom concrete crown reshaping, lead flashing detailing, and durable stainless steel chimney cap installations, RH Renovation NYC permanently eliminated the chimney’s water leakage and structural decay vulnerabilities. The Bronx homeowners now benefit from a modern, fully protected, and visually refreshed chimney assembly engineered to withstand severe urban weather for decades.
