Flat Roof Replacement Professional Service
RH Renovation NYC completed a comprehensive low-slope flat roof replacement featuring complete tear-off down to the structural deck, tapered insulation drainage engineering, high-density cover board laydown, and high-performance elastomeric single-ply membrane installation for a property located in New York City. Low-slope roofing assemblies across the NYC metropolitan area face constant exposure to severe urban environmental factors—including heavy ultraviolet (UV) radiation, severe wind-shear funneled between urban structures, driving rain from seasonal nor’easters, and harsh winter freeze-thaw cycles.
Over time, these regional weather extremes cause legacy flat roof membranes to split at field seams, blister, and collect standing ponding water. Trapped moisture exerts continuous hydrostatic pressure on the underlying building envelope, saturating internal insulation, rotting structural decking, and causing costly interior water damage. This project was engineered to strip away the failing roof structure down to the raw deck, optimize hydrodynamic water drainage, and deploy a seamless, commercial-grade waterproof membrane built for multi-decade durability and thermal efficiency.
Comprehensive Scope of Work & Installation Methodology
To satisfy strict New York City Department of Buildings (DOB) energy and building code standards, our licensed and insured flat roofing specialists executed a multi-phase technical installation protocol:

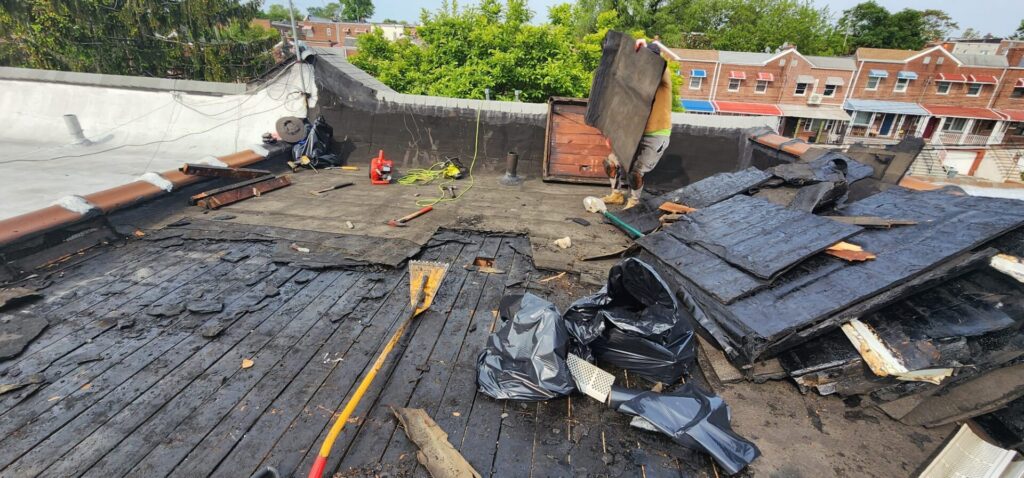

Complete Tear-Off & Structural Subdeck Audit: Technicians systematically stripped away all layers of the legacy roof membrane, waterlogged insulation, and deteriorated flashing details down to the structural decking. A thorough inspection was conducted across the exposed deck, replacing damaged timber or metal substrate panels to re-establish a solid, level foundation.

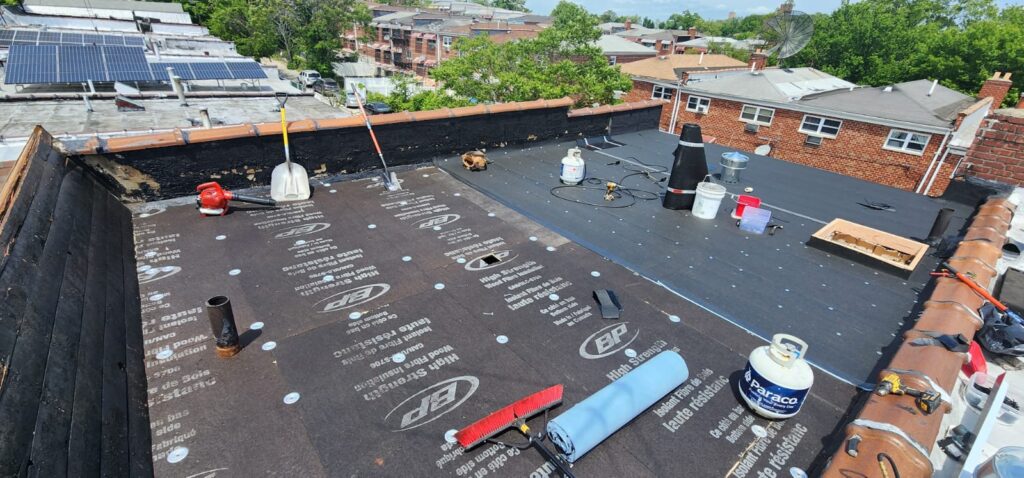

Tapered Insulation Laydown & Hydrodynamic Drainage Optimization: Rigid high-R-value polyisocyanurate (ISO) insulation boards and custom tapered insulation crickets were installed across the deck. This precise sloping strategy eliminates standing water zones by directing rainwater fluidly toward internal roof drains, scuppers, and perimeter collection points.

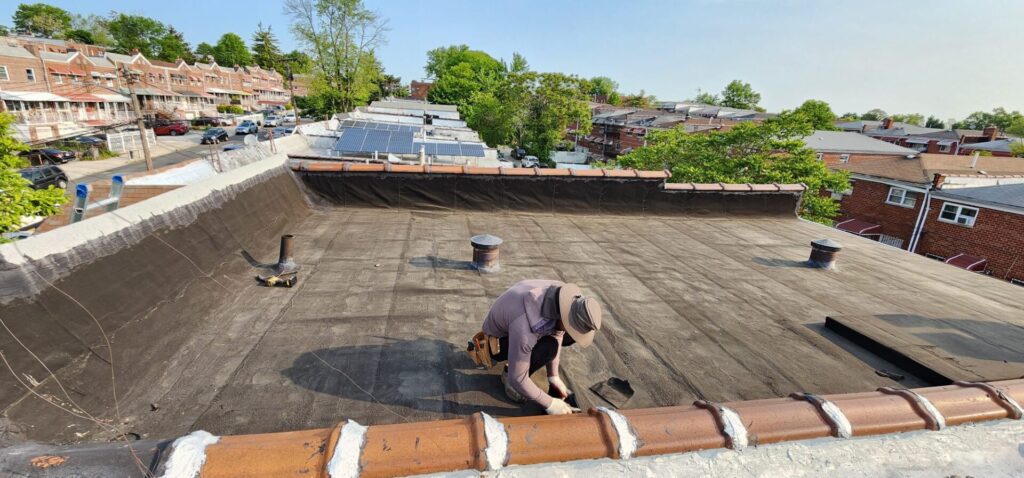

High-Performance Elastomeric Membrane Installation: Premium commercial-grade flat roof membrane (such as heavy-duty EPDM or hot-air welded TPO) was laid out, allowed to relax, and fully adhered across the field using high-tack bonding adhesives. All field seams were fused using specialized hot-air welding or industrial vulcanizing seam tapes to form a monolithic, highly flexible waterproof shield.
Parapet Wall & Penetration Flashing Detailing: All critical transition junctions—including masonry parapet walls, roof drains, skylight curbs, HVAC platforms, and plumbing vent stacks—were wrapped in reinforced membrane flashing boots, secured with heavy-duty metal termination bars, and sealed with non-sag polyurethane lap sealants.
Final Quality Assurance & Compliance Audit: A thorough multi-point inspection and seam-probe audit were performed to verify seamless adhesion, complete edge termination security, and fluid drainage pathways, followed by a complete site cleanup.
Project Highlights & Technical Specifications
Service Category: Commercial & Residential Low-Slope Flat Roof Replacement & Waterproofing
Project Location: New York City, NY
Core Materials Used: Commercial-grade elastomeric flat roof membrane (EPDM/TPO), high-R-value polyisocyanurate (ISO) insulation boards, custom tapered insulation crickets, heavy-duty metal termination bars, prefabricated membrane boots, and industrial polyurethane lap sealants.
Key Engineering Focus: Hydrostatic ponding water elimination, urban wind-shear uplift resistance, thermal envelope energy optimization, and NYC DOB code compliance.
Results & Property Owner Value
By completely replacing the failing roof assembly with a custom-engineered, tapered insulation drainage system and heavy-duty single-ply membrane, RH Renovation NYC permanently eliminated the property’s leak and ponding water vulnerabilities. The property owner now enjoys an impenetrable, energy-efficient flat roof assembly built to withstand extreme New York weather while protecting the long-term structural value of the building.
