Project: Flat Roof Vent Installation Service

RH Renovation NYC completed a low-slope flat roof ventilation installation and waterproofing penetration integration featuring core deck penetration cutting, custom plumbing/exhaust vent pipe sleeve mounting, rubberized target-patch membrane encapsulation, heat-fused modified bitumen tie-in, and heavy-gauge metal counter-flashing collar installation for a residential property in The Bronx, NYC. Low-slope flat roof assemblies across urban Bronx neighborhoods face extreme microclimatic challenges—including high thermal radiation during summer months, standing water accumulation from heavy seasonal downpours, and severe winter freeze-thaw cycles.

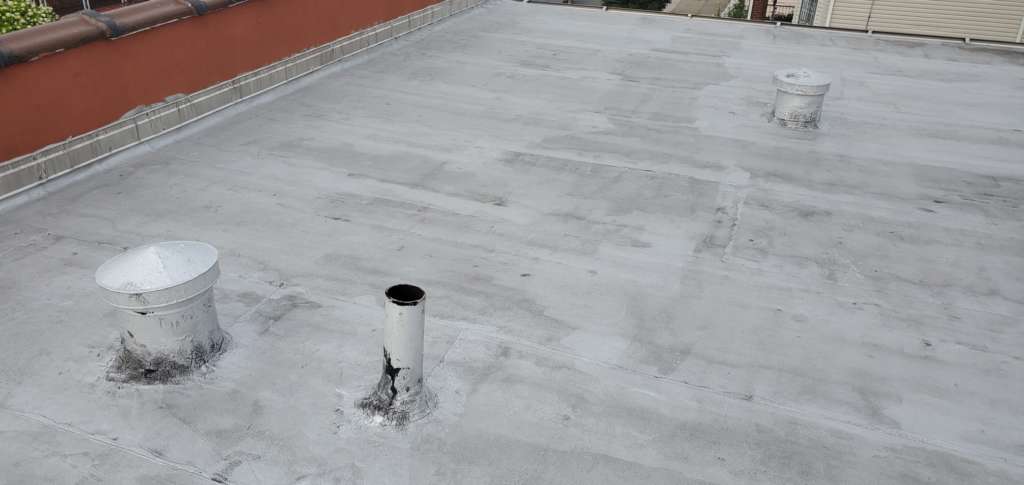

Proper rooftop ventilation is critical for low-slope roof longevity and interior environmental health. Inadequate or failing roof vents allow moist air from interior kitchen or bathroom exhaust systems to condense within ceiling cavities and underlying roof insulation. Trapped moisture degrades structural wood sheathing, rots ceiling joists, ruins insulation value, and creates persistent indoor mold risks. Furthermore, unsealed or poorly flashed flat roof vent penetrations represent major leak vectors during intense rainfall or winter snowpack melting. This project was engineered to deliver a precision-sealed, fully code-compliant ventilation outlet built to guarantee continuous interior moisture relief while maintaining absolute flat roof membrane watertightness.

Comprehensive Scope of Work & Installation Methodology

To adhere strictly to New York City Department of Buildings (DOB) building codes, mechanical exhaust guidelines, and commercial flat roofing manufacturer standards, our licensed and insured Bronx specialists executed a systematic, multi-phase technical installation protocol:

• Penetration Layout & Core Deck Cutting: Technicians mapped out the optimal vent position to avoid primary structural joists. Using precision cutting equipment, a clean penetration opening was made through the existing modified bitumen membrane, insulation boards, and timber subdeck.

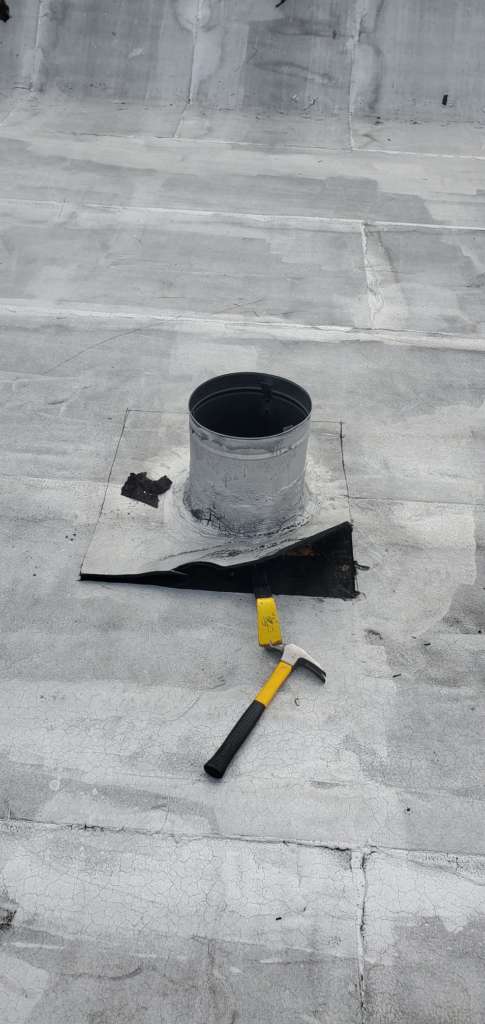

• Structural Rafter Bracing & Sleeve Installation: The surrounding roof deck was inspected for moisture integrity. Structural framing around the opening was reinforced, and a heavy-gauge galvanized steel vent sleeve was securely anchored to the roof deck structure.

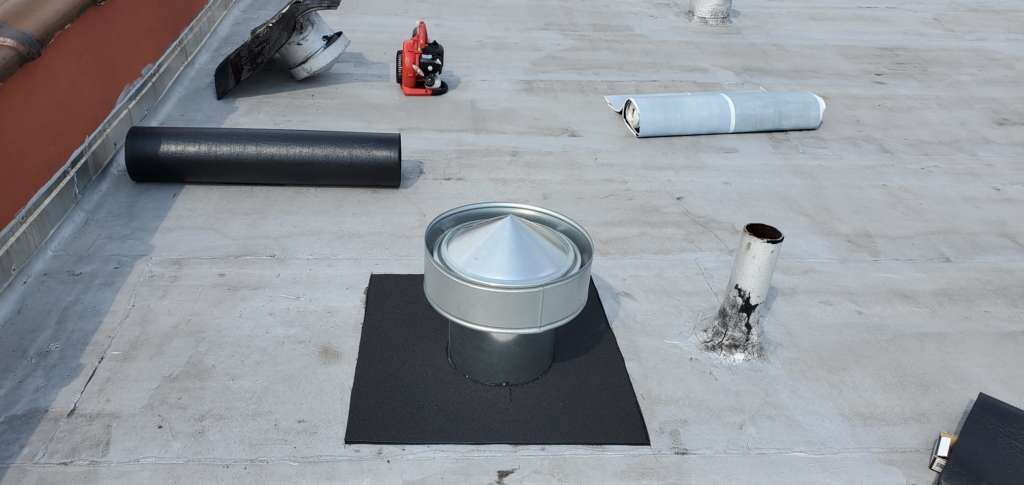

• Asphaltic Primer & Rubberized Target Patch Laydown: The existing membrane surface around the penetration was thoroughly cleaned, wire-brushed, and treated with high-adhesion asphaltic bonding primer. A heavy-duty rubberized self-adhering target membrane patch was centered over the pipe flange and extended outward across the prepped roof deck to establish a secondary fluid barrier.

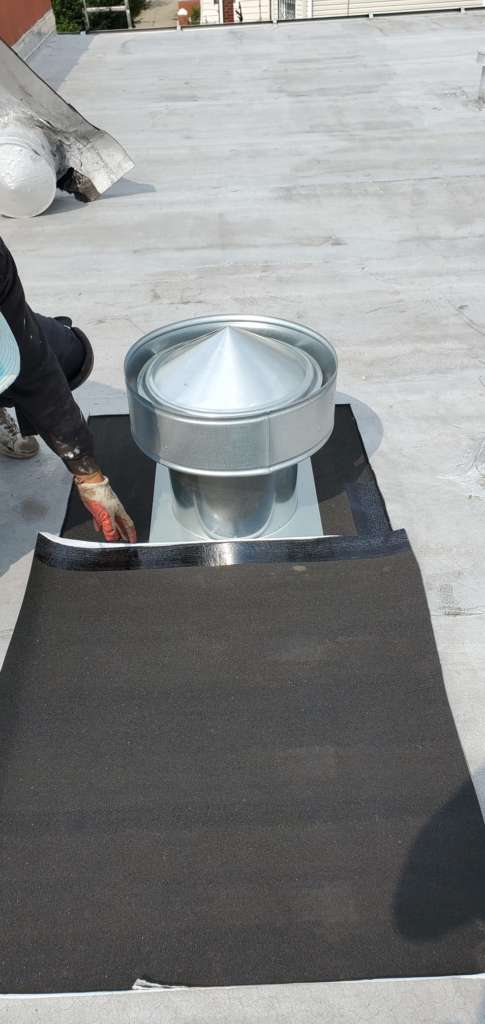

• Heat-Fused Modified Bitumen Membrane Flashing Tie-In: A heavy-duty polyester-reinforced elastomeric modified bitumen target sheet was fitted around the vent base and heat-fused directly to the existing roof field using controlled torch application. Seams were rolled under pressure to create a permanent, monolithic seal against standing water and wind-driven rain.

• Metal Storm Collar Attachment & Polyurethane Sealing: A heavy-gauge aluminum storm collar and vent cap were fitted over the flue extension, mechanically clamped above the flashing base, and encapsulated with industrial non-sag, UV-resistant exterior polyurethane sealant.

• Water Flow Audit & Magnetic Site Clearance: A targeted high-pressure water discharge test was conducted around the new vent assembly to verify 100% watertight performance under simulated pooling conditions, followed by a thorough site cleanup.

Project Highlights & Technical Specifications

• Service Category: Low-Slope Flat Roof Vent Penetration Installation, Thermal Exhaust Optimization & Target Membrane Flashing

• Project Location: The Bronx, New York, NY

• Core Materials Used: Heavy-gauge galvanized steel vent sleeve, dual-pane aluminum storm collar, polyester-reinforced elastomeric modified bitumen target sheet, high-adhesion asphaltic bonding primer, self-adhering rubberized target membrane patch, and non-sag exterior polyurethane lap sealant.

• Key Engineering Focus: Watertight penetration encapsulation, indoor humidity relief, monolithic torch-fused seam bonding, standing water defense, and NYC DOB code compliance.

Results & Homeowner Value

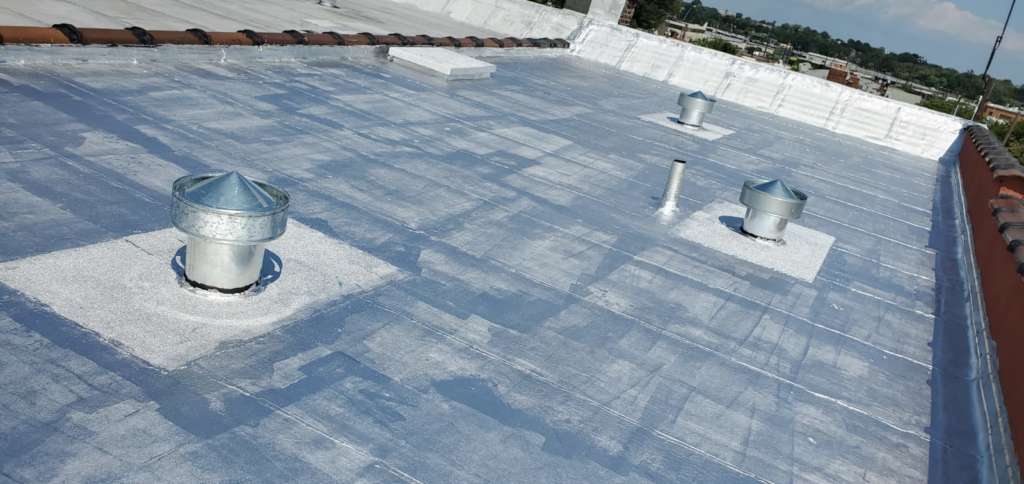

By combining precision structural core cutting with dual-layer target patch membrane encapsulation, heat-fused tie-ins, and storm collar sealing, RH Renovation NYC permanently secured the flat roof penetration. The Bronx homeowners now benefit from an optimized exhaust ventilation system and a heavy-duty, weather-tight flat roof assembly built to withstand severe regional weather for decades.
