Project: Gutter Repair and Spanish Tile Roofing

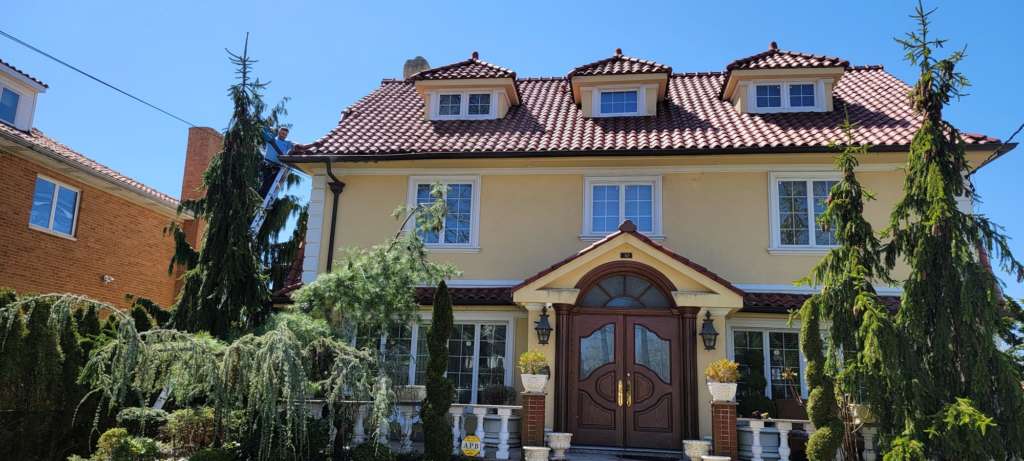

RH Renovation NYC completed a specialized historic exterior envelope restoration featuring Spanish clay tile repair, subdeck underlayment waterproofing, custom flashing tie-ins, and high-capacity gutter system repair for a residential property located in Brooklyn, NYC. Spanish clay tile roofs across Brooklyn’s historic and architectural neighborhoods provide unmatched aesthetic character and thermal insulation. However, they demand precise technical expertise when subjected to New York City’s severe seasonal weather—including freeze-thaw expansion cycles, high wind-shear coastal gusts, and heavy wind-driven rain.

When individual Spanish clay tiles crack, slip, or lose alignment, moisture bypasses the primary tile barrier and saturates the underlying waterproofing underlayment. If accompanied by clogged, loose, or sagging gutters, overflowing rainwater runs back under the roof edge, rotting wooden fascia, eroding masonry facades, and causing severe interior water damage. This project was engineered to deliver a delicate, non-destructive tile roof restoration combined with full rainwater management refurbishment, preserving the home’s historic charm while establishing a modern, watertight weather envelope.

Comprehensive Scope of Work & Installation Methodology

To satisfy strict New York City Department of Buildings (DOB) codes and historic preservation standards, our licensed and insured Brooklyn tile roofing specialists executed a meticulous, multi-phase technical protocol:

• Non-Destructive Tile Inspection & Careful Removal: Technicians established cushioned roof walkways to safely navigate the steep-slope clay tile field without cracking fragile surrounding tiles. Damaged, cracked, and displaced Spanish tiles were carefully removed to expose the underlying subdeck and waterproofing membrane.

• Secondary Waterproofing Substrate Repair: The exposed deck zones were inspected for rot or structural degradation. Damaged sections were repaired, and high-tensile, self-adhering ice-and-water shield membranes were integrated beneath the tile battens to re-establish an impenetrable secondary water barrier.

• Spanish Tile Replacement & Copper Fastening: Authentic Spanish clay tiles—precisely matched in profile, barrel size, and color tone—were fitted into the field. Each replacement tile was secured using non-corrosive copper nails and weather-resistant copper wire ties to handle extreme urban wind-shear uplift without shifting.

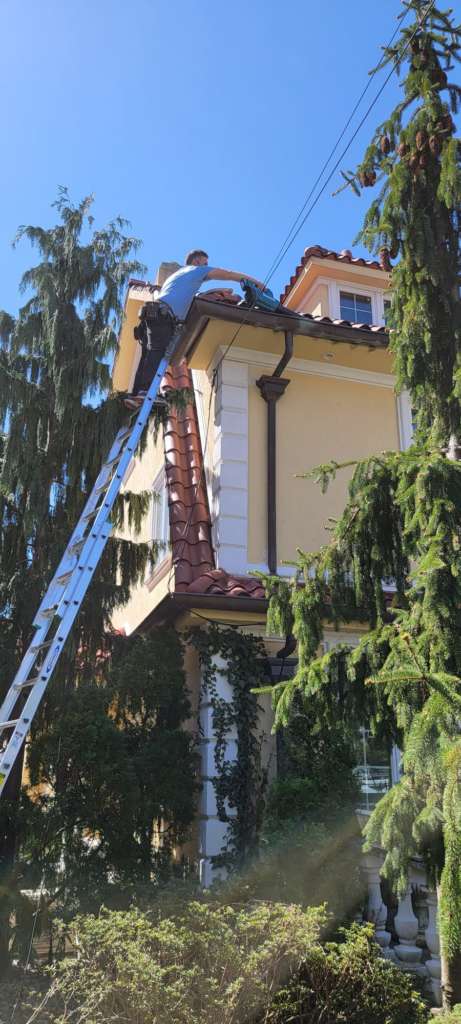

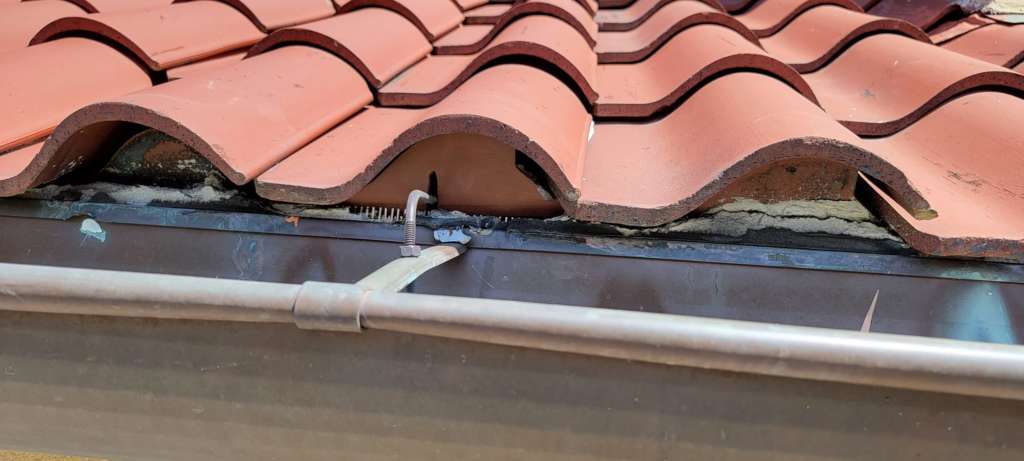

• Gutter System Alignment, Pitch Calibration & Re-Anchoring: The existing gutter runs were thoroughly inspected, cleaned, and realigned. Technicians recalibrated the pitch using laser leveling tools to ensure optimal gravity flow toward downspouts. Heavy-duty internal hidden hangers were installed and anchored directly into rafter ends to handle heavy rain and winter ice loads.

• Flashing Integration & Polyurethane Joint Sealing: Custom-bent copper and aluminum transition flashings were integrated around valleys, eaves, and tile terminations. All gutter end caps, miter corners, and downspout drop outlets were re-sealed using non-sag, UV-resistant exterior polyurethane sealants.

• Final Quality Control & Flow Test: A comprehensive high-volume water-flow test was conducted to verify that rainwater drains smoothly across the Spanish tile field, flows into the re-pitched gutters, and discharges cleanly through the downspout system.

Project Highlights & Technical Specifications

• Service Category: Historic Clay Tile Roof Repair, Secondary Waterproofing & Rainwater Drainage Refurbishment

• Project Location: Brooklyn, New York, NY

• Core Materials Used: Profile-matched Spanish clay barrel tiles, high-tensile self-adhering ice-and-water shield, solid copper nails/wire ties, heavy-duty internal hidden hangers, copper/aluminum transition flashings, and industrial polyurethane sealants.

• Key Engineering Focus: Non-destructive tile restoration, secondary moisture defense, wind-uplift resistance, precision gutter pitch calibration, and NYC DOB code compliance.

Results & Homeowner Value

By combining specialized Spanish clay tile restoration with comprehensive gutter repairs, RH Renovation NYC permanently eliminated the property’s water intrusion vulnerabilities while preserving its distinct architectural beauty. The Brooklyn homeowners now enjoy complete structural weatherproofing protection and an efficient, low-maintenance drainage system built to withstand harsh coastal storms.
