Project: Installed a New Layer Over the Existing Flat Roof

RH Renovation NYC completed a precision low-slope flat roof overlay and waterproofing restoration featuring thorough substrate cleaning, non-destructive moisture testing, asphaltic primer application, heavy-duty elastomeric modified bitumen cap sheet laydown, and a high-albedo solar reflective elastomeric coating for a residential property in the Greater New York City area. Low-slope and flat roof structures across the region are continuously exposed to severe environmental stressors—including standing rainwater pooling from intense summer downpours, severe freeze-thaw cycles during winter, high wind-shear gusts, and prolonged solar UV radiation.

When an existing flat roof membrane experiences mid-life surface degradation, micro-fissuring, or seam wear without widespread substrate failure or waterlogging, executing a engineered roof overlay provides an efficient, cost-effective, and code-compliant alternative to a complete tear-off. Adding a high-performance waterproofing cap sheet directly over a prepped, sound substrate doubles the roof’s waterproofing barrier thickness, seals vulnerable seam lines, reinforces flashings, and restores complete hydrostatic resistance without generating excess landfill waste or exposing the building interior to weather risks during construction. This project was engineered to deliver a seamless, leak-proof overlay system designed to extend functional service life and optimize thermal performance.

Comprehensive Scope of Work & Installation Methodology

To satisfy strict regional building codes and national flat roofing association standards, our licensed and insured roofing specialists executed a systematic, multi-phase technical installation protocol:

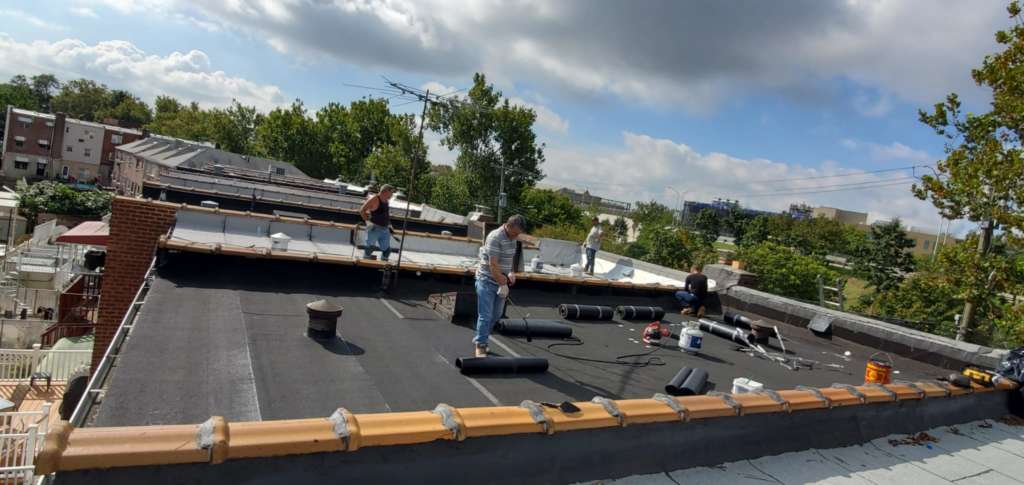

• Surface Preparation & Substrate Moisture Audit: Technicians thoroughly power-washed and cleared the existing flat roof surface of dirt, loose mineral granules, and organic debris. Non-destructive moisture testing was conducted across the field to verify that the underlying insulation and wooden deck structure were completely dry, structural, and fully stable for overlay adhesion.

• Perimeter Flashing & Transition Reinforcement: All parapet wall flashings, roof drain boots, scupper outlets, and mechanical curb transitions were prepped, cleaned, and primed. Existing seam gaps and hairline stress cracks were reinforced with high-tensile polyester fabric mesh embedded in elastomeric joint compounds.

• High-Adhesion Asphaltic Primer Laydown: A specialized asphaltic bonding primer was applied uniformly across the prepped substrate to establish a superior molecular bond between the legacy roof surface and the new waterproofing cap sheet layer.

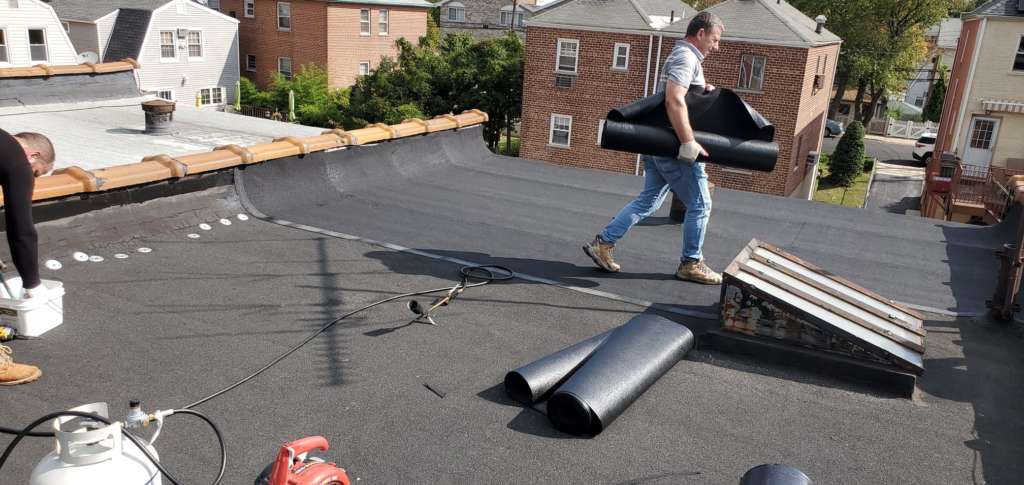

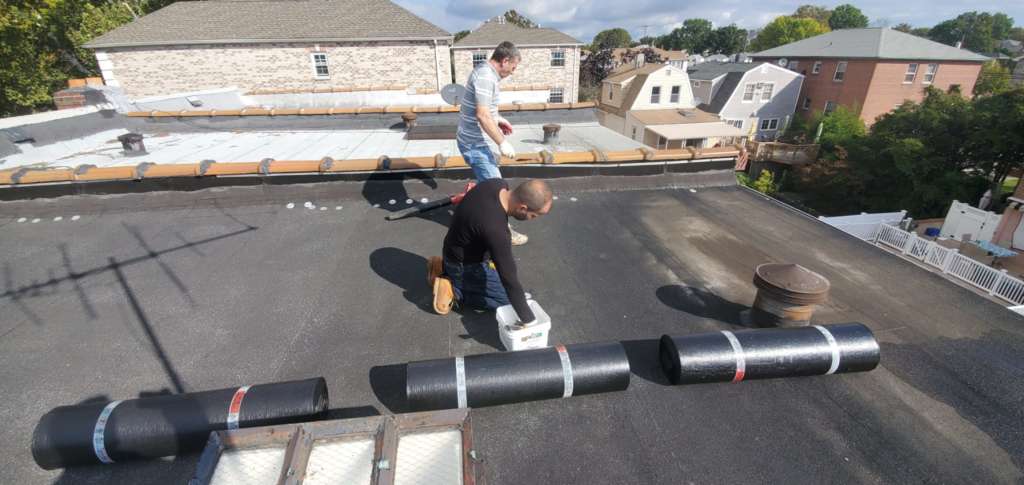

• Heavy-Duty Elastomeric Modified Bitumen Overlay: Premium polyester-reinforced elastomeric modified bitumen cap sheets were installed across the roof field using controlled heat-welding techniques. All side and end lap seams were heat-fused under heavy roller pressure to create a monolithic, continuous waterproof barrier against standing water and ice dams.

• Parapet Termination & Wall Encapsulation: The new membrane layer was extended up perimeter parapet walls and mechanical penetration curbs, secured with heavy-gauge metal termination bars, and sealed with non-sag exterior polyurethane lap sealants to prevent wind-driven rain infiltration behind flashing edges.

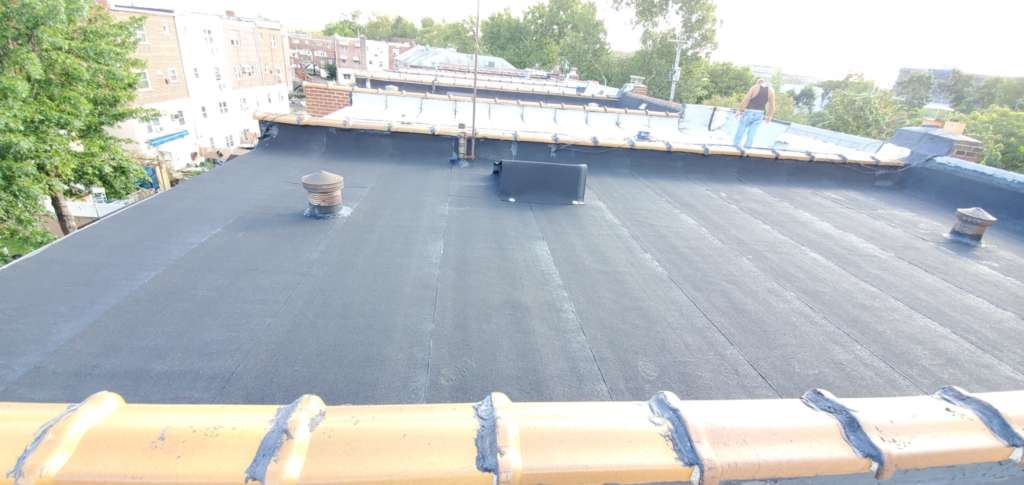

• High-Albedo Reflective Coating & Quality Inspection: A commercial-grade reflective aluminum elastomeric coating was applied across the cured membrane surface. This solar-reflective layer blocks up to 85% of harmful UV radiation, dramatically lowering summer roof temperatures and reducing indoor cooling energy loads. A multi-point seam inspection and water discharge test confirmed 100% fluid tightness, followed by a complete site cleanup.

Project Highlights & Technical Specifications

• Service Category: Low-Slope Flat Roof Overlay, Bituminous Waterproofing & UV Solar Reflective Coating

• Project Location: Greater New York City Area

• Core Materials Used: Polyester-reinforced modified bitumen cap sheet, high-adhesion asphaltic primer, heavy-gauge aluminum termination bars, non-sag polyurethane lap sealants, high-tensile polyester reinforcing mesh, and high-albedo reflective aluminum roof coating.

• Key Engineering Focus: Monolithic standing water defense, fusion seam integrity, urban heat-island reduction, waste-reducing envelope restoration, and regional building code compliance.

Results & Homeowner Value

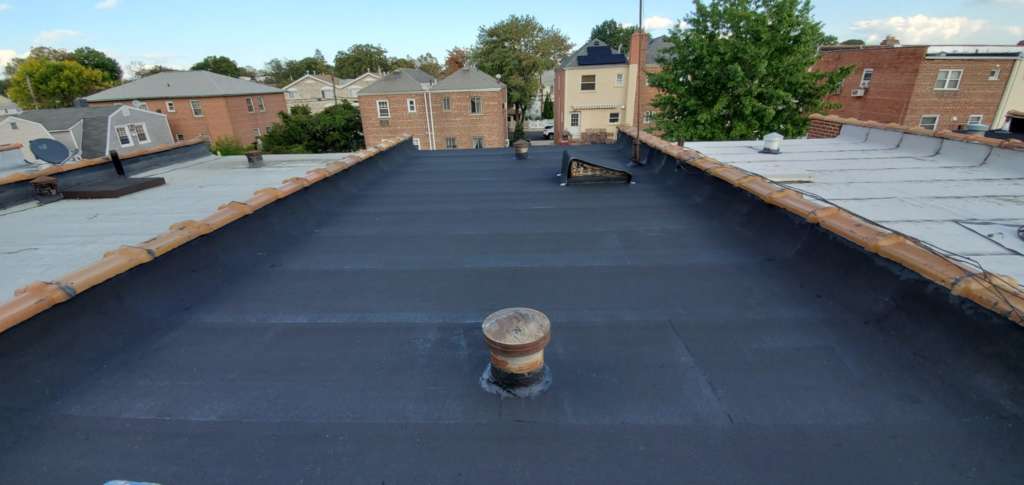

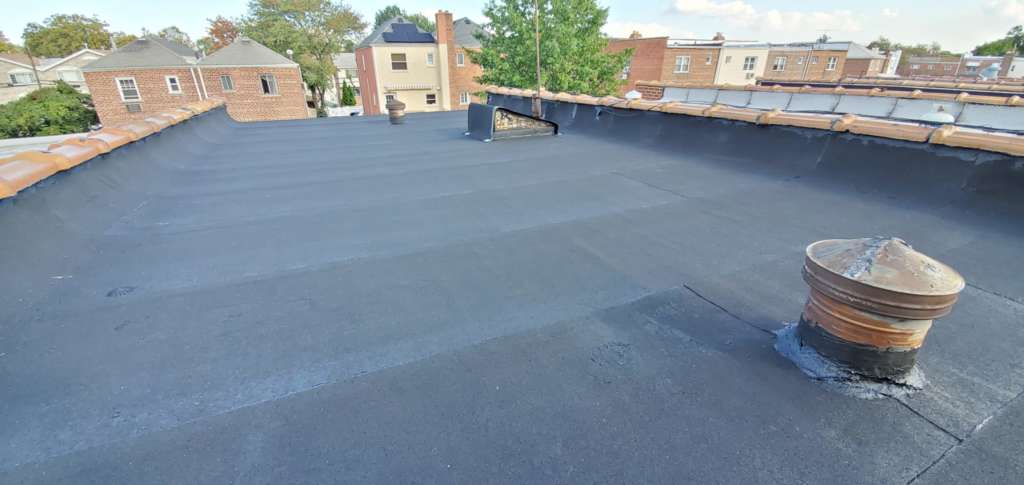

By deploying a high-performance flat roof overlay backed by fused seam technology and a solar-reflective coating, RH Renovation NYC permanently eliminated the property’s leak vulnerabilities. The homeowners now enjoy a heavy-duty, weather-tight, and energy-efficient flat roof assembly built to withstand severe regional weather for years to come.
