Project: New Downspout Installation in the Bronx

RH Renovation NYC completed a multi-family condominium rainwater management upgrade featuring damaged downspout removal, heavy-gauge aluminum downspout installation, secure masonry anchoring, and ground-level water diversion integration for a property located in The Bronx, NYC. Multi-story residential condominiums in The Bronx generate massive surface water runoff during severe weather events—such as seasonal nor’easters, tropical storm remnants, and sudden summer cloudbursts.

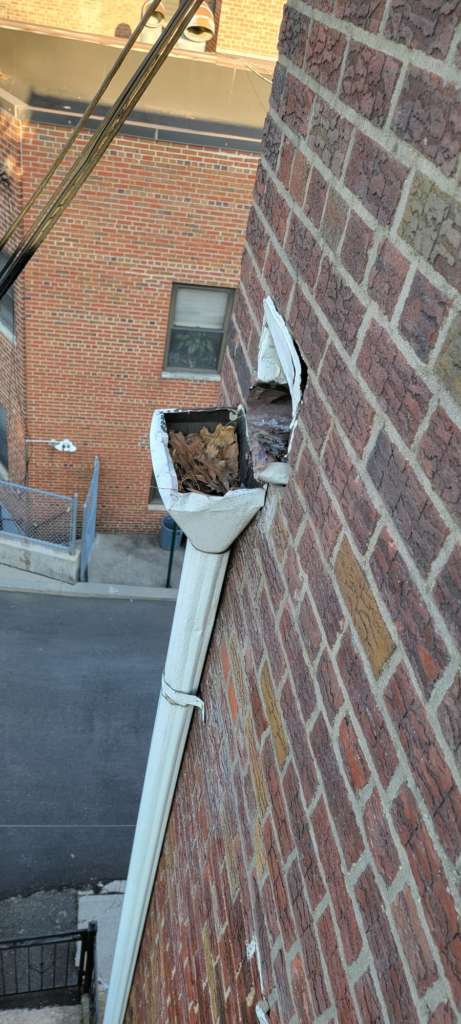

When vertical downspout runs become dented, clogged, detached, or seam-split by winter freeze-thaw expansion, stormwater fails to evacuate from upper gutter assemblies. Overflows cascade directly down building facades, seeping into exterior brick mortar joints, staining architectural cladding, rusting fire escapes, and pooling at the building’s base. Left unaddressed, localized runoff pooling saturates perimeter soils, threatens basement wall waterproofing, and risks costly structural foundation repairs. This project was engineered to deliver a continuous, high-capacity vertical discharge assembly designed to handle heavy volume and redirect stormwater safely away from multi-family building structures.

Comprehensive Scope of Work & Installation Methodology

To satisfy strict New York City Department of Buildings (DOB) code compliance and urban drainage specifications, our licensed and insured Bronx exterior specialists executed a systematic, multi-phase technical installation protocol:

• Legacy Assembly Demolition & Wall Inspection: Technicians safely dismantled and removed the damaged, undersized downspout sections and corroded mounting brackets. The exterior wall substrate and masonry anchors were thoroughly inspected to ensure a solid foundation for new hardware attachment.

• Custom Downspout Fabrication & Drop Outlet Alignment: Heavy-gauge, commercial-grade aluminum downspout sections were custom-fit to match the full multi-story height of the condominium building. Downspout drops were precision-aligned with the roof’s upper gutter outlet nozzles to prevent turbulence and flow restriction.

• Heavy-Duty Masonry Wall Anchorage: High-strength aluminum mounting straps were anchored into structural brick joints using non-corrosive expansion anchors. Spaced at engineered vertical intervals, these fasteners secure the downspout against intense urban wind-shear gusts and vibration caused by high-velocity water movement.

• Sealed Expansion Elbows & Ground-Level Water Diversion: Custom-bent offset elbows were fitted around architectural building ledges to maintain a clean aesthetic profile while preventing water backup at bend points. At ground level, high-capacity splash blocks and diversion elbows were integrated to direct discharge cleanly into municipal drainage pathways away from the foundation wall.

• Seam Polyurethane Locking & Flow Verification: All offset joints, drop sleeve connections, and elbow seams were mechanically fastened and sealed with non-sag, UV-resistant exterior polyurethane lap sealants. A high-volume water-discharge test confirmed rapid fluid displacement with zero joint leakage, followed by a complete ground-level site cleanup.

Project Highlights & Technical Specifications

• Service Category: Commercial & Multi-Family Residential Rainwater Management, Vertical Downspout Replacement & Water Diversion

• Project Location: The Bronx, New York, NY

• Core Materials Used: Heavy-gauge aluminum rectangular downspout sections, non-corrosive masonry expansion anchors, heavy-duty aluminum mounting straps, precision offset elbows, concrete splash blocks, and industrial polyurethane joint sealants.

• Key Engineering Focus: Multi-story runoff volume displacement, urban wind-shear anchorage, masonry facade protection, foundation hydrostatic pressure defense, and NYC DOB code compliance.

Results & Property Owner Value

By replacing the compromised downspout run with a commercial-grade, securely anchored aluminum system, RH Renovation NYC permanently protected the condominium’s masonry facade and foundation from uncontrolled water damage. The Bronx property management team and unit owners now benefit from an efficient, low-maintenance vertical drainage solution engineered to perform during extreme New York storm conditions.
