Project: New Shingle and Gutter Installation the Bronx
RH Renovation NYC completed a total steep-slope roof assembly renewal and rainwater control upgrade featuring complete legacy shingle tear-off, deteriorated subdeck wood removal, structural CDX plywood installation, self-adhering ice-and-water shield laydown, high-wind architectural shingle weaving, and continuous seamless aluminum gutter mounting for a residential home in The Bronx, NYC. Residential rooflines across urban Bronx neighborhoods are exposed to continuous, severe environmental stresses—including wind-shear gusts funneled through dense city corridors, heavy downpours from seasonal nor’easters, extreme summer UV exposure, and winter freeze-thaw cycles that promote destructive ice damming.
When an aging shingle roof experiences tab seal breakdown, granule loss, or undetected structural subdeck rot, moisture penetrates the primary barrier. Trapped water weakens underlying wooden roof sheathing, rots rafter tails, degrades interior ceiling plaster/drywall, and ruins attic insulation performance. Concurrently, failing or leaking sectional gutters allow heavy roof runoff to overflow, saturating exterior wall cladding and threatening basement footings. This project was engineered to deliver a complete roof envelope renewal: stripping away compromised materials, rebuilding degraded structural decking with fresh CDX plywood, establishing multi-tier waterproofing defense, and precision-mounting a high-capacity seamless gutter system.
Comprehensive Scope of Work & Installation Methodology
To satisfy strict New York City Department of Buildings (DOB) residential building safety codes and national roofing standards, our licensed and insured Bronx specialists executed a systematic, multi-phase technical installation protocol:

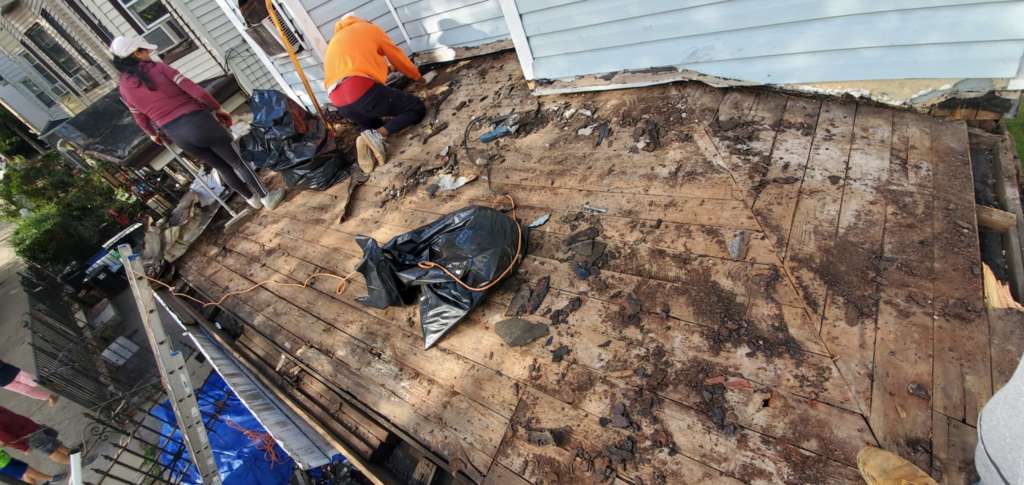

Complete System Tear-Off & Subdeck Structural Audit: Technicians systematically stripped away all layers of deteriorated legacy shingles, failed underlayments, rotten trim boards, and obsolete gutter hardware down to the primary wood framing. Exposed subdeck sheathing and rafter tails were thoroughly audited for moisture decay and structural instability.

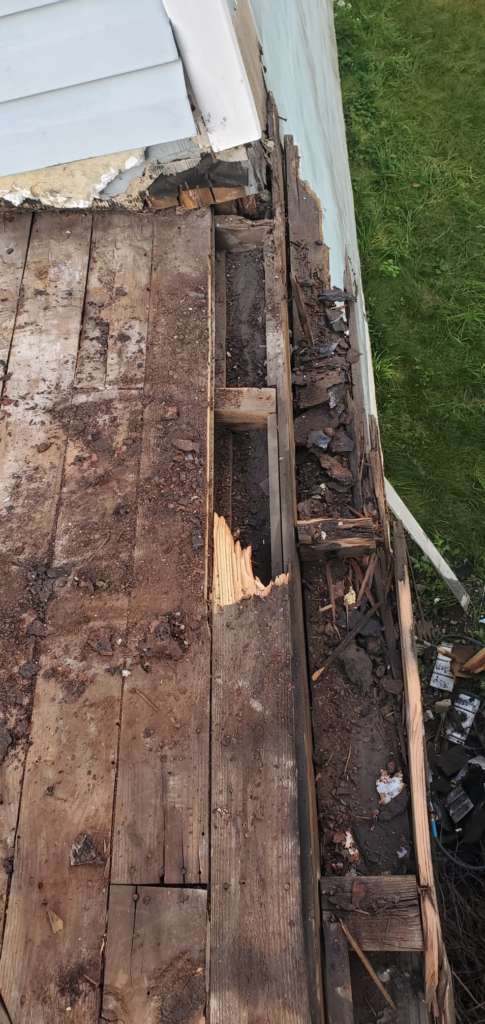

Deteriorated Wood Removal & Structural CDX Subdeck Replacement: All soft, water-damaged, or delaminated timber deck panels were excised and replaced with new structural CDX exterior-grade plywood sheathing. Plywood panels were double-fastened to rafter joists to establish a flat, rigid, and nail-tight fastening plane across the entire roof deck.
Dual-Tier Waterproofing & Ice-Dam Barrier Application: Heavy-duty rubberized self-adhering ice-and-water shield membranes were installed continuously along high-stress eave margins, rake edges, valleys, and wall-to-roof transitions to prevent water back-ups caused by winter ice dams. High-tensile, tear-resistant synthetic underlayment was laid across the remaining roof field to provide superior UV resistance and secondary moisture defense.

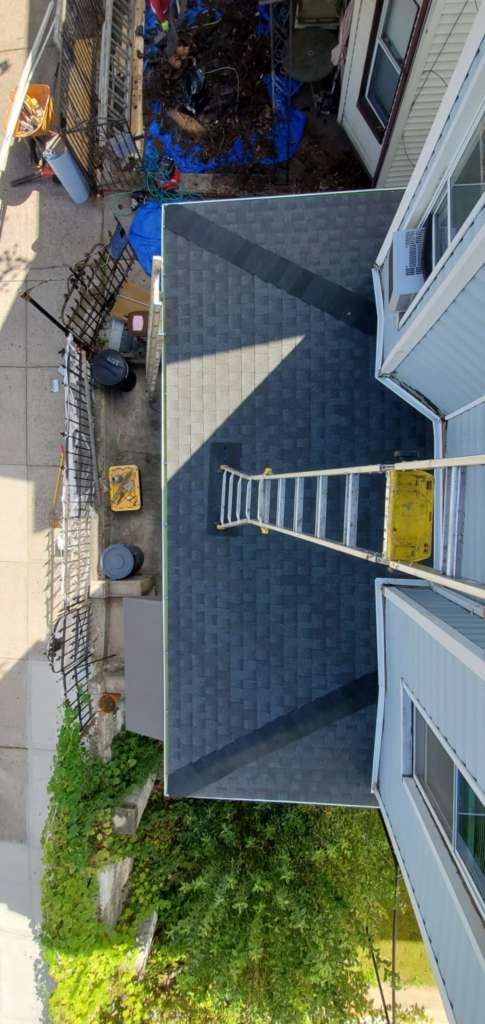

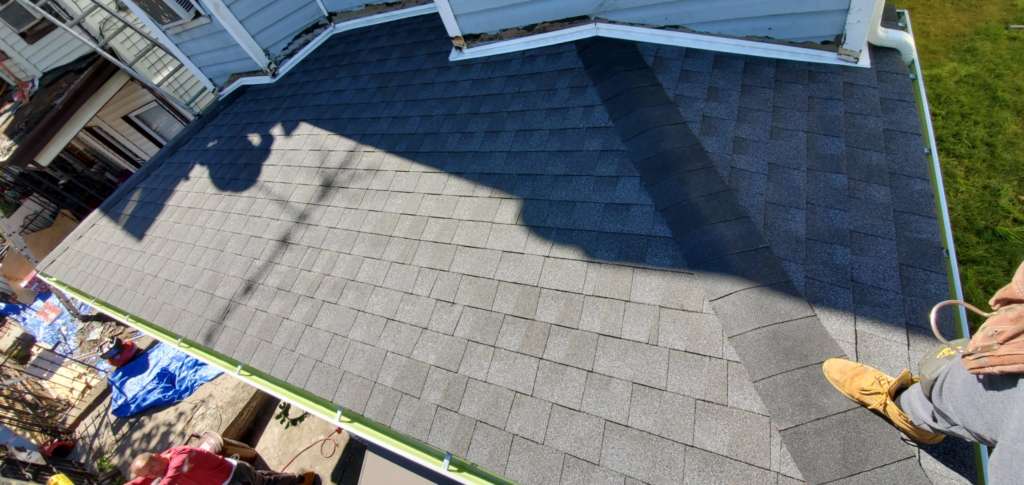

High-Wind Architectural Shingle Weaving: Premium dimensional architectural asphalt shingles were installed across the roof deck using an engineered six-nail fastening pattern per shingle course. Starter strip shingles were locked securely along eave and rake perimeters to guarantee maximum resistance against high urban wind-shear uplift.
On-Site Seamless Gutter Fabrication & Laser Pitch Calibration: Heavy-gauge seamless aluminum gutters were roll-formed on-site to match exact eave dimensions, completely eliminating vulnerable sectional joint seams. Using digital leveling tools, technicians established a precise downward slope toward downspout drops and anchored the runs using heavy-duty hidden internal screw hangers driven directly into structural rafter ends.
Flashing Integration & Final Quality Audit: Heavy-gauge aluminum drip edge flashings and plumbing vent pipe boots were integrated and sealed with industrial non-sag exterior polyurethane lap sealants. A multi-point roof tightness inspection and water flow discharge test were conducted, followed by a thorough magnetic ground sweep to clear all metal debris.
Project Highlights & Technical Specifications
Service Category: Complete Steep-Slope Roof Replacement, Subdeck Structural Wood Remediation, High-Wind Architectural Shingle Weaving & Continuous Rainwater Management System
Project Location: The Bronx, New York, NY
Core Materials Used: Premium dimensional architectural asphalt shingles, structural CDX exterior-grade plywood sheathing, self-adhering rubberized ice-and-water shield membrane, high-tensile synthetic underlayment, heavy-gauge aluminum drip edge flashings, seamless aluminum gutters, internal hidden screw hangers, and industrial polyurethane lap sealants.
Key Engineering Focus: Complete structural deck stabilization, hydrostatic ice-dam defense, urban wind-shear uplift resistance, precision-pitched stormwater evacuation, and NYC DOB code compliance.
Results & Homeowner Value

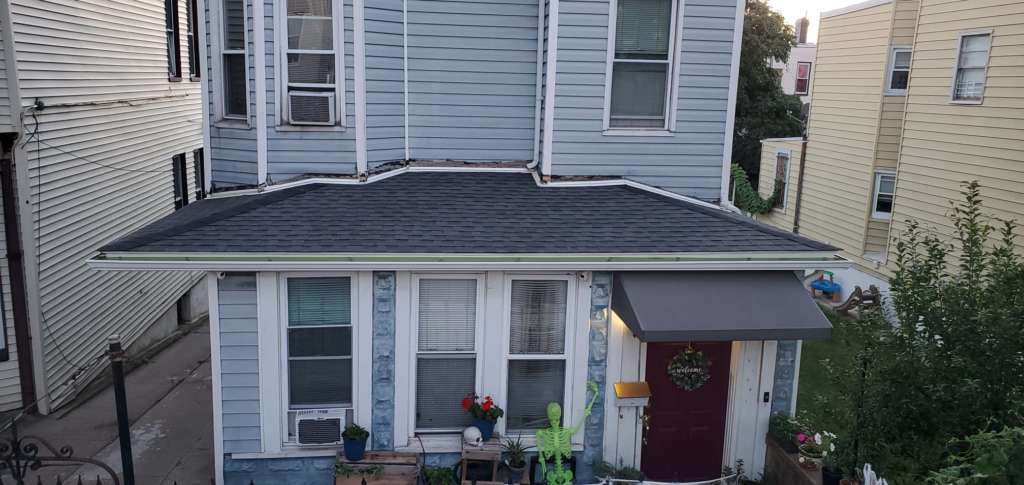

By combining structural wood subdeck replacement with multi-layer waterproofing membranes, high-wind architectural shingles, and a seamless aluminum gutter assembly, RH Renovation NYC permanently fortified the home against severe weather infiltration. The Bronx homeowners now benefit from a structurally sound, highly durable, and completely weather-tight exterior building envelope engineered to protect their property for decades.
