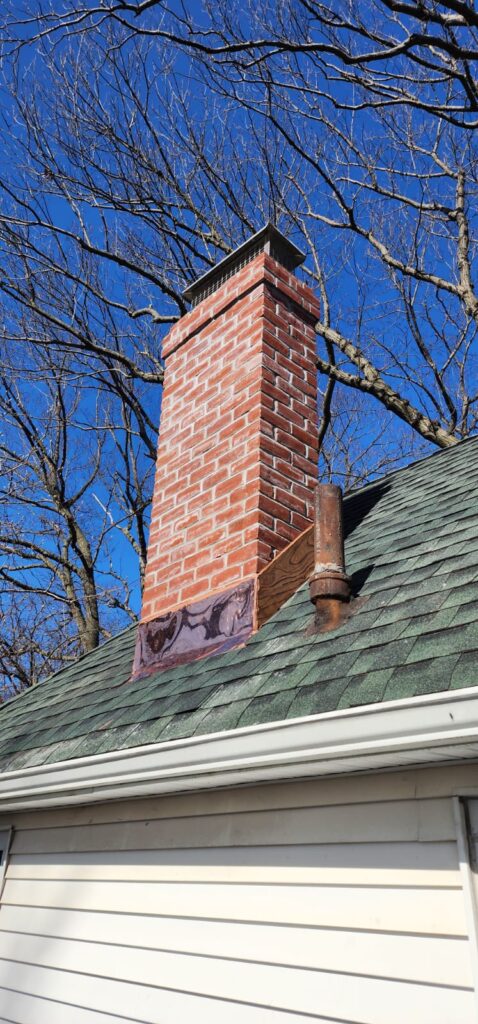

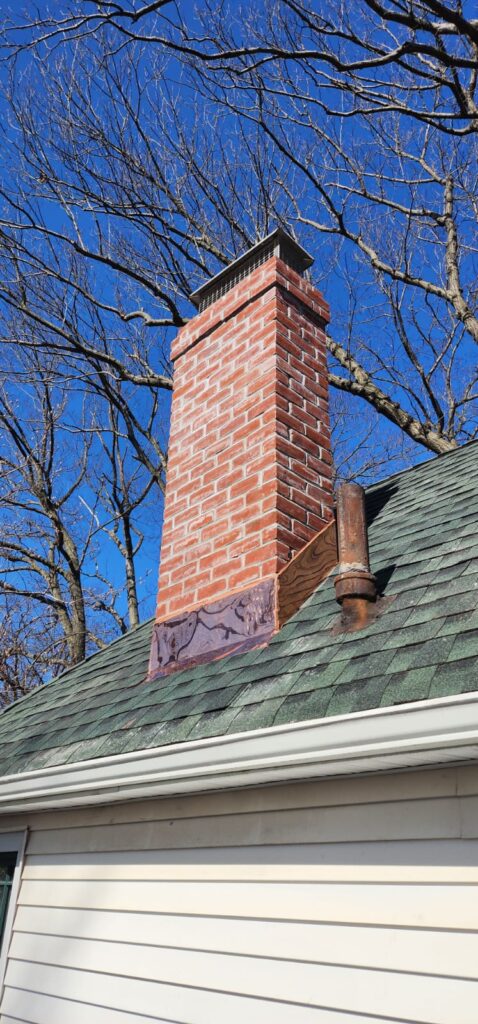

Rebuild a New Chimney in the Bronx NYC
RH Renovation NYC completed a full structural chimney teardown and complete masonry reconstruction featuring custom brickwork matching, concrete crown poured casing, flue liner installation, and integrated multi-layer flashing systems for a property located in the Bronx, NYC. Densely built urban residential structures across the Bronx subject exterior masonry features to harsh environmental wear—including severe freeze-thaw expansion cycles, thermal stress from winter heating operations, driving rain from seasonal nor’easters, and harsh atmospheric pollution.
Over time, moisture infiltration through hairline mortar cracks causes spalling bricks, crumbling mortar joints, and internal chimney collapse. Left unaddressed, a compromised chimney poses severe structural hazard risks, interior water damage to adjacent roof and wall assemblies, and dangerous ventilation hazards. This project was engineered to safely dismantle the deteriorating, unstable masonry structure down to a solid baseline foundation and rebuild a fully code-compliant, structurally sound, and weather-tight chimney built for multi-decade safety and exterior beauty.
Comprehensive Scope of Work & Installation Methodology
To adhere strictly to New York City Department of Buildings (DOB) safety regulations and masonry construction standards, our licensed and insured Bronx masonry and roofing specialists executed a rigorous, multi-phase engineering protocol:
Controlled Teardown & Site Containment: Technicians erected safety scaffolding and heavy containment barriers around the work zone. The compromised, spalling chimney stack was systematically dismantled brick-by-brick down to sound, uncompromised masonry framing below the roofline, preventing structural collapse and keeping debris away from the property.
High-Strength Masonry Rebuild & Brick Matching: Utilizing premium exterior-grade clay bricks matched to the existing architectural design, technicians rebuilt the chimney stack using high-durability, weather-resistant Portland cement mortar mix. Joints were deeply struck and bucket-handle finished to maximize water shedding and resist water penetration during freeze-thaw cycles.
Flue Liner Installation & Thermal Protection: High-heat clay terracotta flue liners (or heavy-gauge stainless steel liner systems) were embedded within the core of the newly built chimney stack to handle exhaust combustion gases safely, isolate thermal transfer from timber roof structure framing, and meet NYC DOB fire safety mandates.
Custom Integrated Flashing & Counter-Flashing System: Heavy-gauge metal step flashing was interleaved sequentially with the surrounding roof shingles, while custom counter-flashing was deeply set into precision-cut masonry reglet joints and sealed with high-grade polyurethane sealant to form a watertight roof-to-chimney seal.
Reinforced Concrete Crown & Chimney Cap Integration: A custom, oversized cast-in-place concrete crown with a drip-edge overhang was constructed atop the chimney stack to shed rainwater away from the brick face. A heavy-duty stainless steel spark arrestor cap was permanently anchored over the flue to block rain intrusion, debris, and animal nesting.
Final Inspection & Masonry Sealing Audit: A complete multi-point structural inspection verified proper mortar setting, flue ventilation clearance, and flashing tightness, followed by the application of a breathable siloxane water-repellent masonry sealer and site cleanup.
Project Highlights & Technical Specifications
Service Category: Complete Structural Masonry Chimney Reconstruction & Roof Flashing Integration
Project Location: The Bronx, New York, NY
Core Materials Used: Exterior-grade clay masonry bricks, high-strength Type N/S mortar, high-temp terracotta flue tiles, custom metal step/counter flashing, cast-in-place concrete crown, stainless steel flue cap, and breathable siloxane sealer.
Key Engineering Focus: Structural load stability, thermal isolation & fire safety, hydrostatic roof transition sealing, freeze-thaw spalling prevention, and NYC DOB code compliance.
Results & Property Owner Value
By completely reconstructing the failing chimney stack from the roof deck up, RH Renovation NYC permanently eliminated structural hazard risks and persistent water leak vulnerabilities. The Bronx property owner now benefits from absolute structural chimney safety, fully optimized heating exhaust venting, long-term freeze-thaw defense, and a striking masonry architectural feature that enhances curb appeal and overall property equity.
