Project: Chimney Repair Services – Renovation and Chimney Cap

RH Renovation NYC completed a comprehensive masonry chimney exterior renovation and weatherproofing upgrade featuring deteriorated top-course masonry teardown, heavy-duty stainless steel flue liner integration, structural wire mesh mortar bed reinforcement, a custom hand-troweled poured concrete chimney crown, and a multi-flue stainless steel chimney cap installation for a residential property in The Bronx, NYC. Chimney structures in the densely built urban corridors of The Bronx endure extreme microclimatic stress—including rapid winter freeze-thaw cycles, driving rain from seasonal nor’easters, severe thermal shock from interior combustion, and high urban atmospheric pollution.

When an aging chimney top degrades, water penetrates through micro-fissures in the concrete crown and unsealed mortar joints. As trapped moisture freezes and expands during winter, it causes surface spalling, brick fracturing, and flue liner degradation. Left unaddressed, top-down water infiltration rots surrounding roof decking, corrodes framing, and risks hazardous carbon monoxide or combustion gas leakage into interior living quarters. This project was engineered to deliver a top-to-bottom structural restoration: rebuilding the compromised upper masonry rim, reinforcing the crown with welded metal wire mesh, pouring a custom wash-sloped concrete cap, and installing a protective stainless steel spark arrestor cap to ensure long-term heating safety and weatherproofing defense.

Comprehensive Scope of Work & Installation Methodology

To satisfy strict New York City Department of Buildings (DOB) building safety codes and NFPA 211 national chimney standards, our licensed and insured Bronx masonry specialists executed a meticulous, multi-phase technical protocol:

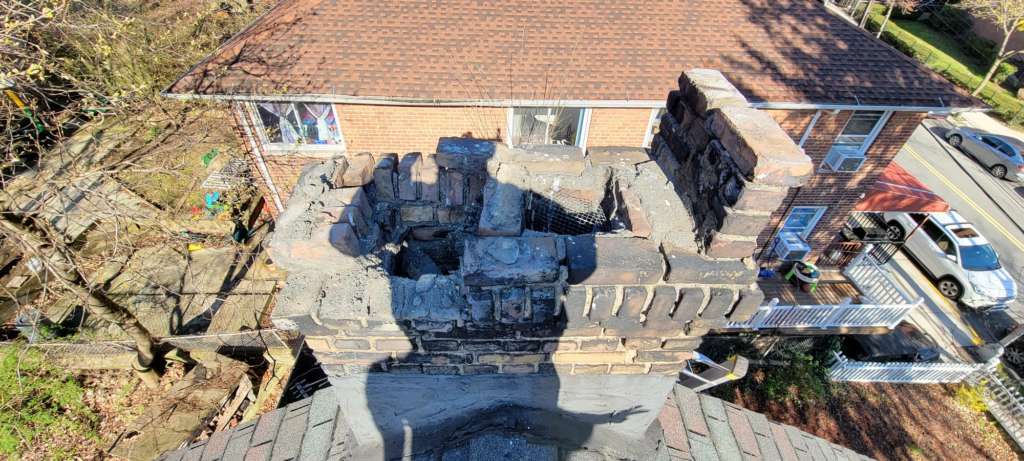

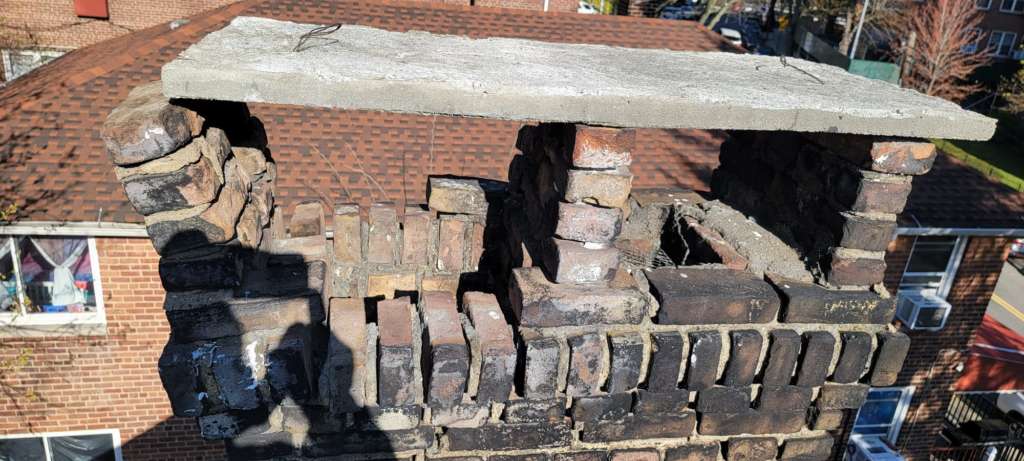

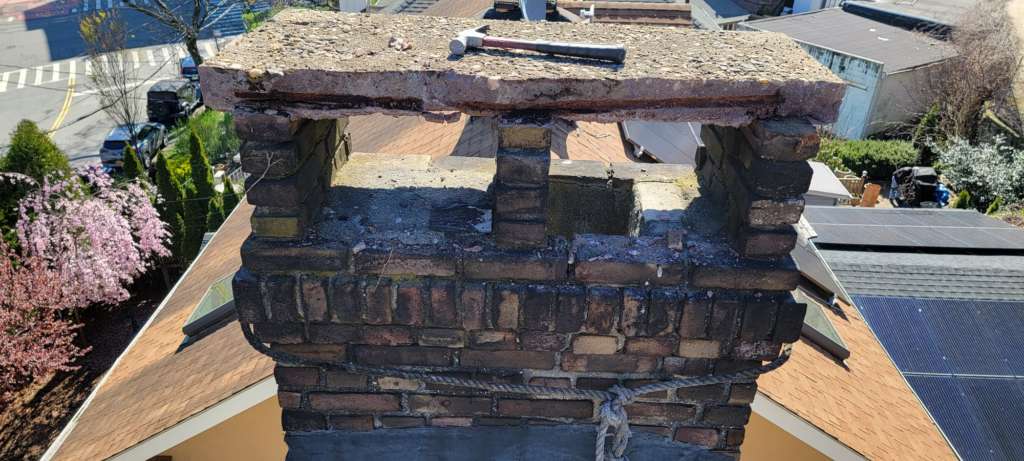

• Top-Course Demolition & Substrate Preparation: Technicians systematically removed the cracked, deteriorating cement crown and crumbling top brick courses down to sound, structurally stable masonry. The exposed chase was cleared of loose mortar, soot, and structural debris.

• High-Capacity Stainless Steel Flue Liner Installation: A continuous, heavy-gauge flexible stainless steel flue liner was inserted down the chimney chase to ensure optimal heating appliance draft efficiency, complete combustion exhaust containment, and thermal isolation from structural house framing.

• Wire Mesh Structural Matrix Reinforcement: High-tensile steel wire metal mesh was contoured across the upper masonry perimeter and flue collar. This structural mesh acts as internal rebar, distributing thermal expansion loads evenly and preventing the new concrete crown from cracking or shifting under severe freeze-thaw conditions.

• Custom Formed & Wash-Sloped Concrete Crown Pouring: A high-strength, fiber-reinforced concrete mix was hand-troweled over the wire mesh matrix to form a solid, crack-resistant top slab. The concrete was pitched downward away from the central flue pipe to shed standing rainwater rapidly off the chimney shoulders.

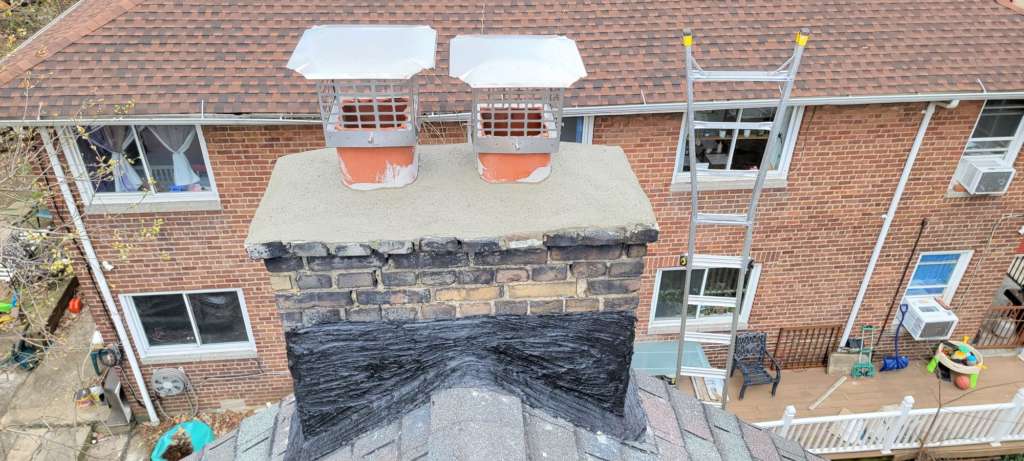

• Heavy-Gauge Stainless Steel Chimney Cap Installation: A premium multi-flue stainless steel chimney cap featuring an integrated fine-mesh spark arrestor screening was anchored securely to the new concrete crown using heavy-duty masonry fasteners. This cap prevents animal nesting, blocks airborne wind-driven rain, and suppresses stray fireplace embers.

• Final Safety Audit & Flashing Inspection: A thorough multi-point safety inspection was conducted—including a draft test, flashing transition verification at the roof deck, and a deep-penetrating siloxane water-repellent spray application across exterior brickwork—followed by a full magnetic sweep and site cleanup.

Project Highlights & Technical Specifications

• Service Category: Residential Masonry Chimney Renovation, Crown Rebuilding & Flue Exhaust Safety

• Project Location: The Bronx, New York, NY

• Core Materials Used: High-tensile steel wire reinforcement mesh, high-strength fiber-reinforced cement mix, heavy-gauge stainless steel flue liner, multi-flue stainless steel chimney cap with wire mesh screen, Type N exterior masonry mortar, and siloxane water-repellent sealer.

• Key Engineering Focus: Hydrostatic water shedding, freeze-thaw spalling prevention, combustion draft optimization, structural thermal matrix stability, and NYC DOB / NFPA 211 code compliance.

Results & Homeowner Value

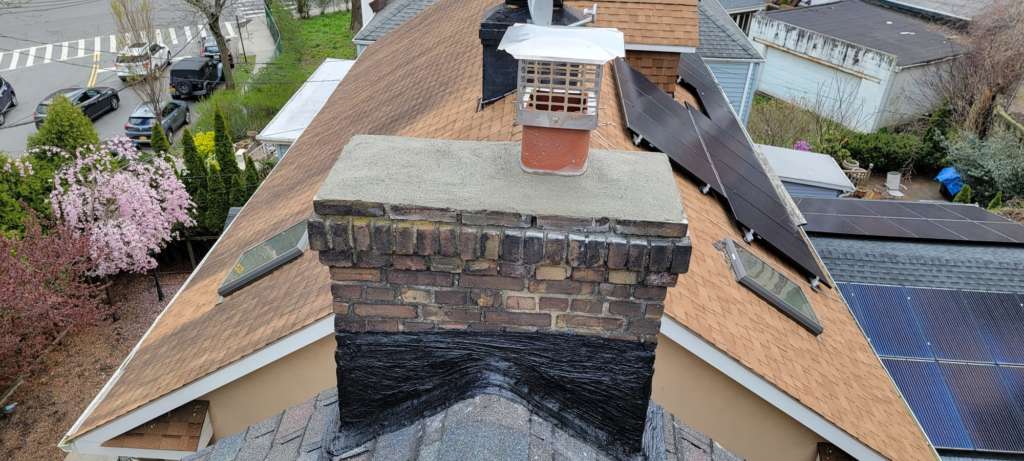

By combining structural wire mesh reinforcement with a custom-poured concrete crown, continuous flue relining, and a heavy-duty stainless steel protective cap, RH Renovation NYC permanently eliminated the chimney’s water leakage and structural decay vulnerabilities. The Bronx homeowners now benefit from an efficient, fully protected chimney system engineered to withstand severe regional weather while elevating the home’s curb appeal and safety.
